Lowrance Transom Mount Transducer

Delivers low profile, high speed performance!

The Lowrance Transom Mount Transducer’s deliver
low profile, high speed performance. This transom-mount model has a
kick-up bracket for protection against impact with debris and
obstructions. They come with all mounting equipment are easy to
install. The Skimmer transducer design performs
best when it is slightly below the boat’s hull.

Choose the correct transducer for your fish finder from the options
available. The 6 Pin Uni-plug options include a built in power
cable and are suited for Eagle and Lowrance fish finders with this
fitting. The Blue Plug fits a 10 pin Blue connector clearly visible
on the back of your Lowrance fish finder.

Lowrance/Eagle Transom Mount Skimmer Transducer
Features:

• Transom Mount Skimmer Transducer
• Built-in Temperature Sensor
• Dual frequency skimmer
• Frequency: 50/200 kHz; 83/200 kHz
• Includes 20 ft or power cable

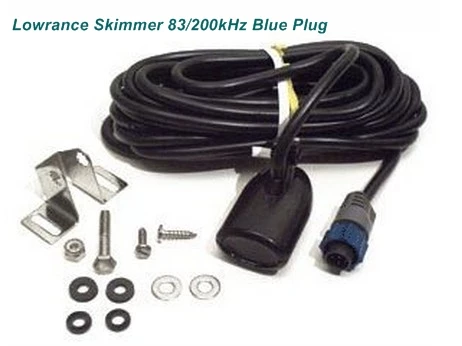

Compatible Units:

Lowrance 83/200Khz Blue Plug
Model Number: HST-WSBL

HDS-10, HDS-5, HDS-5x, HDS-7, HDS-8, LCX-110C, LCX-111C HD,
LCX-112C, LCX-113C HD, LCX-17M, LCX-20C, LCX-25C, LCX-26C HD,
LCX-27C, LCX-28C HD, LCX-37C, LCX-38C HD, LMS-332C, LMS-334C iGPS,
LMS-480, LMS-520C, LMS-522C iGPS, X102C, X125, X135, X-51C, X51,
X52, X71, X-19

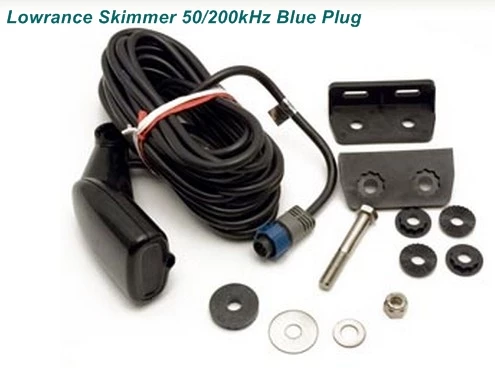

Lowrance 50/200KHz Blue Plug (additional $100)
Model Number: HST-DFSBL

HDS-10, HDS-5, HDS-5x, HDS-7, HDS-8, LCX-110C, LCX-111C HD,
LCX-112C, LCX-113C HD, LCX-17M, LCX-20C, LCX-25C, LCX-26C HD,
LCX-27C, LCX-28C HD, LCX-38C HD, LMS-335C DF, LMS-337C DF, LMS-339C
DF iGPS, LMS-480, LMS-525C DF, LMS-527C DF iGPS, X105C DF, X107C
DF, X126DF, X136DF, X-515C DF, X59DF, LCX-15, LCX-15MT

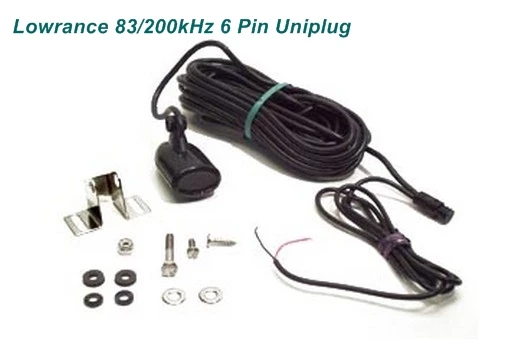

Lowrance 83/200KHz 6 Pin Uniplug
Model Number: HST-WSU

LCF-1440, LST-3800, M56 S/MAP, M68C S/MAP, X47, X47EX, X-50 DS,
X67C, X-86 DS, X96, Elite 5, Elite 5x
Will also suit Eagle: Cuda 128, Cuda 128 P, Cuda
168, Cuda 168 EX, Cuda 242, Cuda 250 S/Map, Cuda 300, Cuda 350,
FishEasy 240, FishEasy 245 DS, FishEasy 250 DS, FishEasy 320,
FishElite 500C, FishElite 502C iGPS, FishElite 640C, FishElite 642C
iGPS, FishMark 320, FishMark 500C, FishMark 640C, FishStrike 1000C,
FishStrike 2000C, SeaFinder 245DS

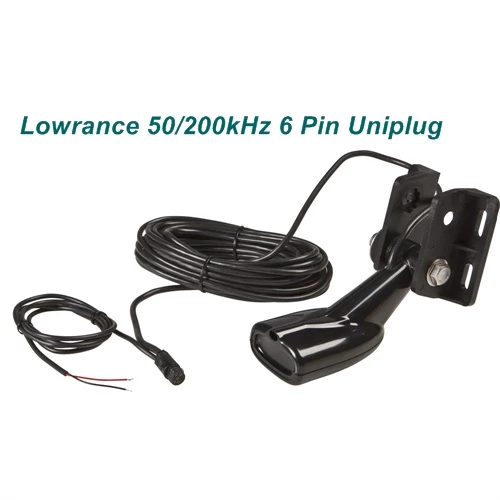

Lowrance 50/200KHz 6 Pin Uniplug (additional
$100)
Model Number: HST-50/200-WSU (50/200 kHz transom
mount Skimmer with uniplug connector)

M56 S/MAP, M68C S/MAP, X67C , Elite 5 , Elite 5x
Will also suit Eagle: SeaChamp 1000C DF, SeaChamp
2000C DF, SeaCharter 500C DF, SeaCharter 502C DF iGPS, SeaCharter
642C DF iGPS, SeaFinder 240DF, SeaFinder 250DF, SeaFinder 320DF,
SeaFinder 480DF, SeaFinder 500C DF, SeaFinder 640C DF, FishEasy
320

Lowrance HDI Transom Transducer
83/200-455-800khz
Model Number: 000-10976-001

The Lowrance Hybrid Dual Imaging (HDI) Skimmer Transducer uses a
Broadband Sounder (83/200 kHz) plus DownScan Imaging (455/800 kHz).
The Sounder operates at depths up to 1,000 feet. The DSI signal
features a maximum depth capability of 350 feet. The unit is
compatible with Broadband Sounder sonar of HDS. Removable mounting
neck. Includes a stainless steel ratchet system for transom mount.
Compatible with Lowrance Scupper Mount and Lowrance HDI Trolling
Motor Adapter.
