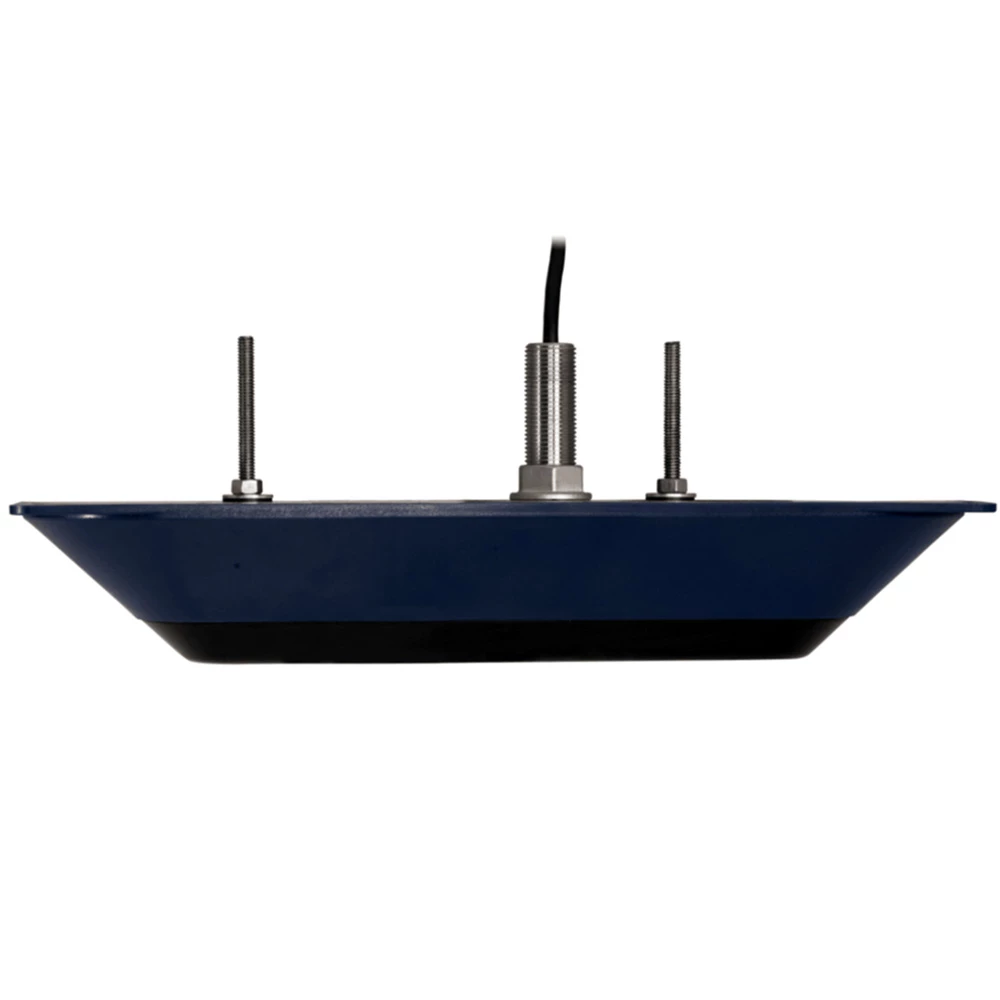

Lowrance TotalScan Thru-Hull Low/High CHIRP Transducer

Target fish and search for fish-holding structure with the same
transducer

An all-in-one transducer, the Lowrance TotalScan Thru-Hull
Low/High CHIRP Transducer matches proven Broadband and
CHIRP sonar with StructureScan HD and DownScan Imaging technology,
making it possible to target fish and search for fish-holding
structure with the same transducer. This transducer is designed for
thru-hull installation and is fully compatible with displays
featuring integrated StructureScan, like Lowrance HDS LIVE, Carbon,
HDS Gen3, and Elite Ti models.

Lowrance TotalScan Thru-Hull Low/High CHIRP Transducer
Features:

• All-in-one transducer featuring Broadband, CHIRP, StructureScan
  HD and DownScan Imaging
• Supports 50/200kHz Broadband sonar frequencies
• Supports Low and High CHIRP frequencies
• Supports 455/800kHz StructureScan frequencies
• Supports Water Temperature
• Fairing block is included in the box

Lowrance TotalScan Thru-Hull Low/High CHIRP Transducer
Specifications:

• Product code: 000-14259-001
• Max Depth: 3000′ (900m) Traditional Sonar300′ (90m) DownScan
  Sonar300′ (90m) Each Side, SideScan Sonar
• Frequencies: 50/200 kHzLow/High CHIRP455/800 kHz
• Output power: 500W
