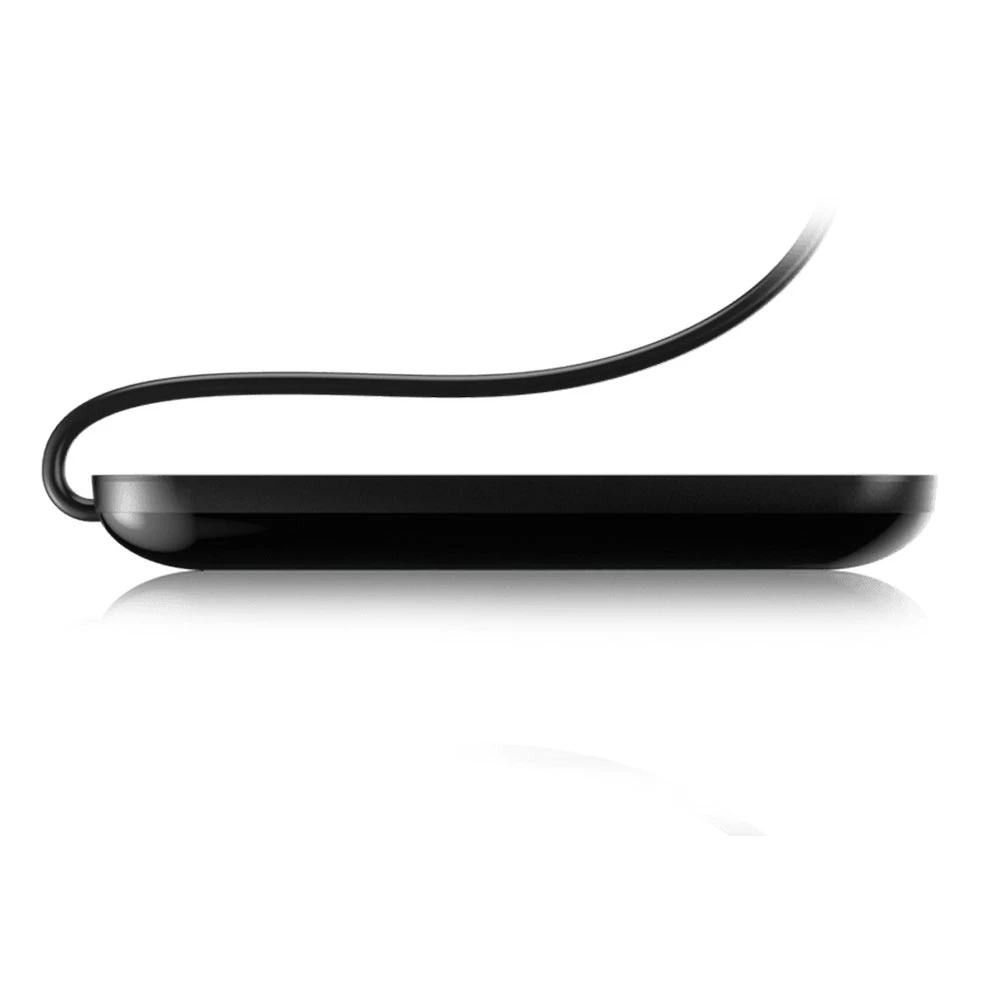

Lowrance TotalScan Skimmer Med/High Transducer 455/800kHz

Total sonar needs in one package

The all-in-one Lowrance TotalScan Skimmer Med/High Transducer gives excellent target separation with CHIRP sonar, plus life-like images beneath and beside the boat with SideScan and DownScan Imaging. It combines the proven technology of CHIRP, DownScan Imaging and StructureScan HD into one package.

Lowrance TotalScan Skimmer Med/High Transducer Features:

• Target fish, search fish-holding structure with one transducer
• All-in-one transducer featuring Broadband, CHIRP, StructureScan HD and DownScan Imaging
• Supports 83/200kHz Broadband sonar frequencies
• Supports Medium and High CHIRP frequencies
• Supports 455/800kHz StructureScan frequencies
• Supports Water Temperature
• Multiple mounting options
• Works with: HDS Carbon, HDS Gen3, Lowrance Elite-7Ti and Elite-5Ti

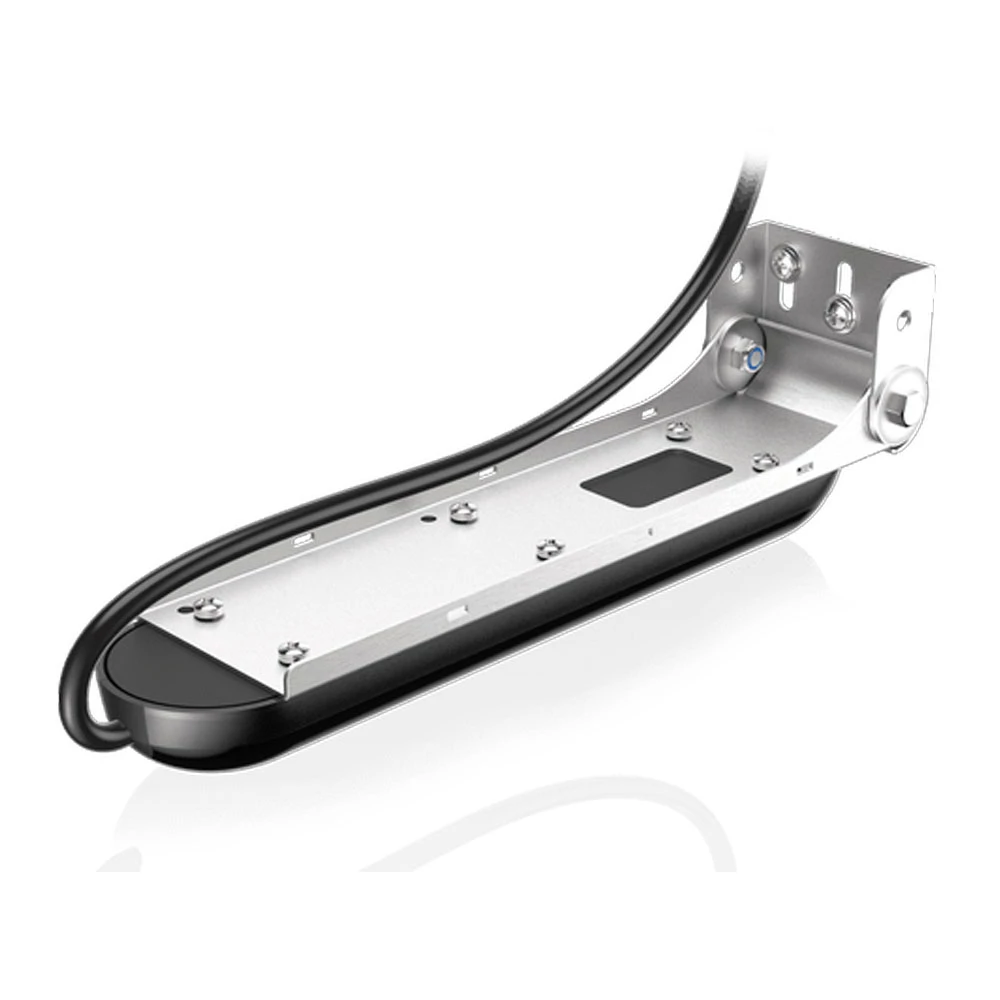

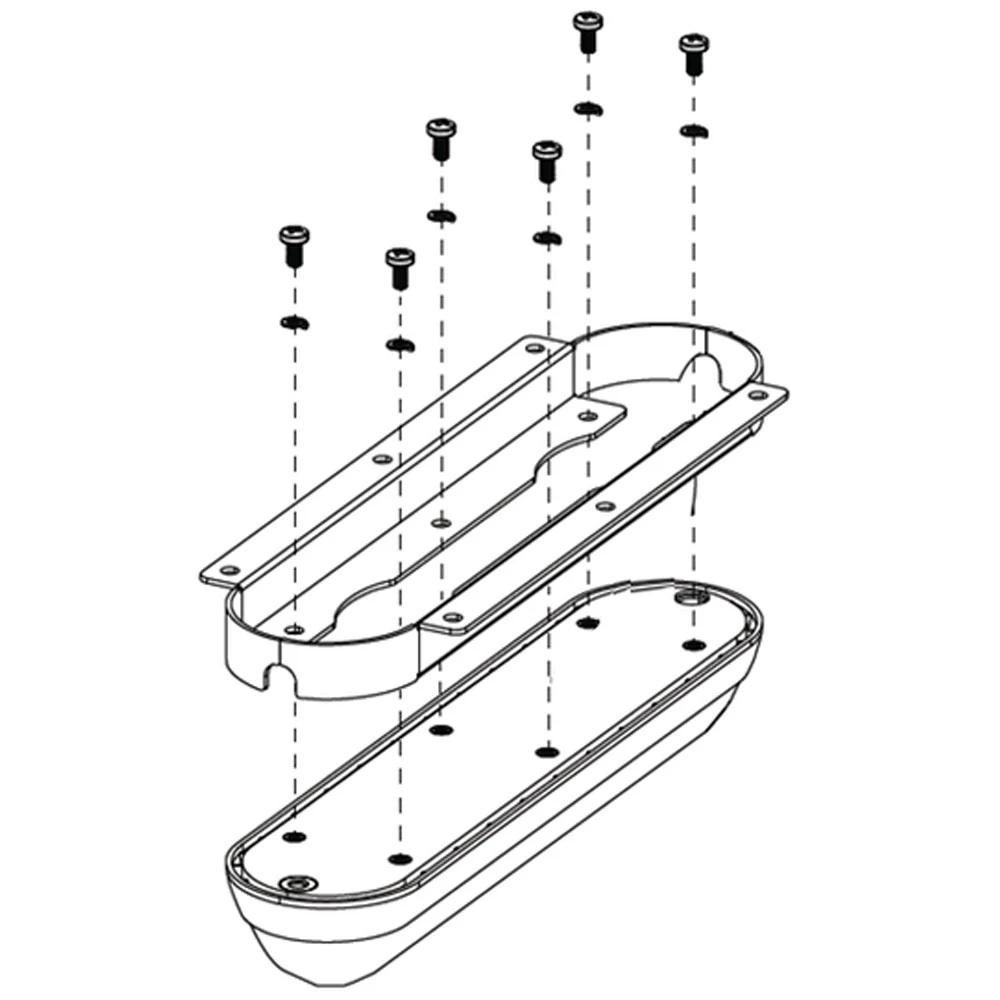

• Includes TotalScan and StructureScan 3D Plastic Replacement Bracket

Lowrance TotalScan Skimmer Med/High Transducer Specifications:

• Trandsducer Frequencies: 83/200/455/800kHz, Medium/High CHIRP

Sonar SideScan Imaging

• Max Range: 455 kHz ─ 600’ (182 m), 300’ (91 m) to each side; 800 kHz ─ 200’ (60 m), 100’ (30 m) to each side
• Max Speed: 35 mph (56 kph)
• Mark Objects: 15 mph (24 kph)
• Optimum Speed: 10 mph (16 kph) or less

DownScan Imaging

• Max Depth: 300’ (92 m)
• Max Speed: 55 mph (88 kph)
• Mark Objects: 35 mph (56 kph)
• Optimum Speed: 10 mph (16 kph) or less

Technical/Environmental

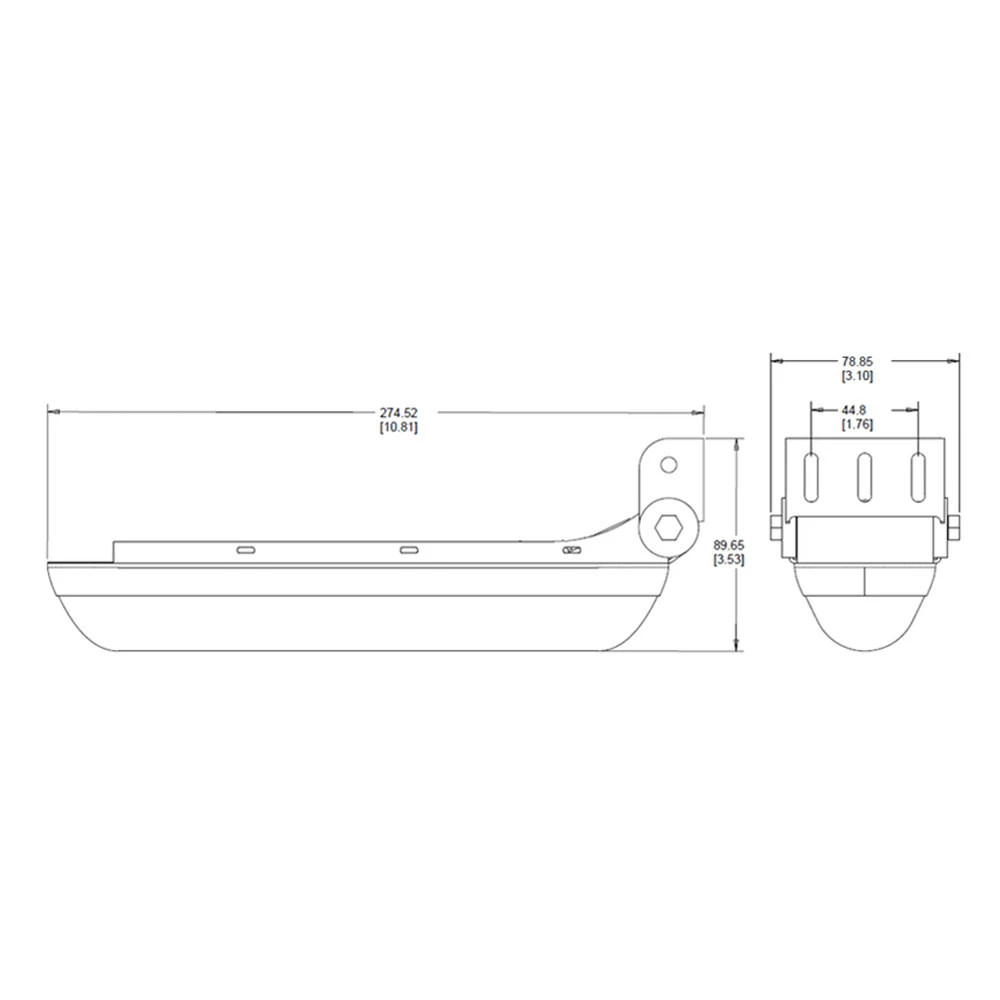

• Product Width: 2.3” (59.2 mm)
• Product Length: 10.2” (259 mm)
• Connectors: xSonic (9-pin)
• Cable: 24’ (7.3 m)

Note: The TotalScan Transducer provides
standard sonar + structure scan. If you want 3D StructureScan you
will need a standard transducer + the 3D module (2nd transducer
included).

Note: Not compatible with HDS Gen2 and older
units.
