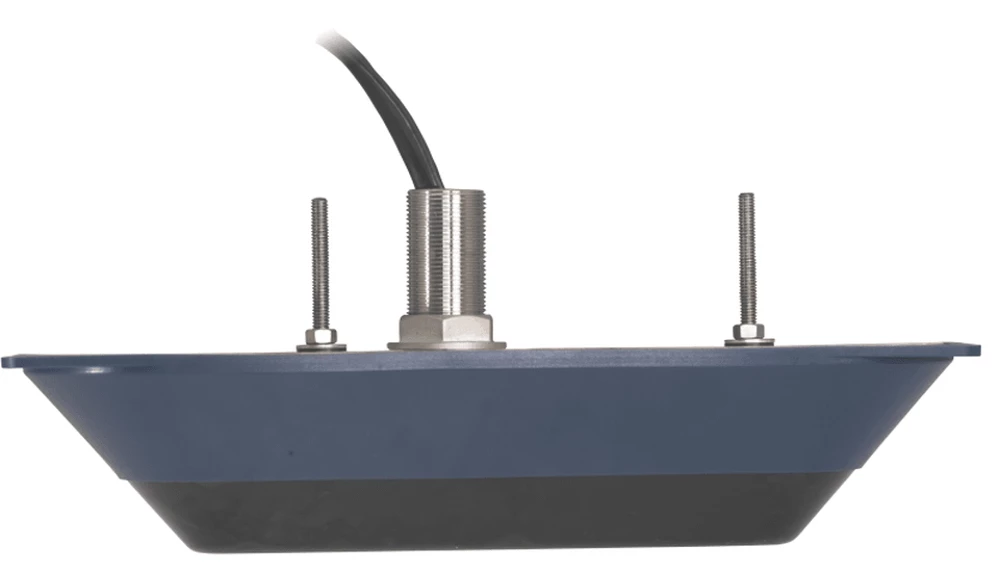

Lowrance StructureScan 3D And Low/High CHIRP Thru-Hull Transducer

StructureScan 3D Imaging
This thru-hull transducer works with the StructureScan 3D module (sold separately) to create a high resolution, three dimensional view of underwater terrain and fish-holding structure. Immediately see where fish and structure are located in relation to your boat, with a picture-like view you can easily pan, tilt, and rotate for the perfect perspective.

CHIRP and Traditional Sonar
The transducer can also be connected directly to the built-in sounder on your Simrad multifunction display, or to a SonarHub sounder module, to provide CHIRP and traditional sonar capabilities. Low-frequency CHIRP offers excellent offshore bottom tracking, while High CHIRP provides detailed coverage of the upper water column and in shallower waters.

Through-Hull Installation
The through-hull transducer can be mounted flat, or with the included fairing block. Stainless steel construction suits a variety of hull materials and designs.

Features:

• StructureScan 3D imaging transducer
• Scans up to 180 metres (600 feet) to each side of your boat
• Also provides Low and High-frequency CHIRP sonar capabilities
• Stainless steel transducer supports through-hull mounting
• Mount flat or with the included fairing block

Specifications:

Radar

Frequencies	50/200 kHzLow/High CHIRP455 kHz
Max Depth	3000′ (900m) Traditional Sonar300′ (90m) DownScan Sonar600′ (180m) Each Side, SideScan Sonar
Output power	500W
