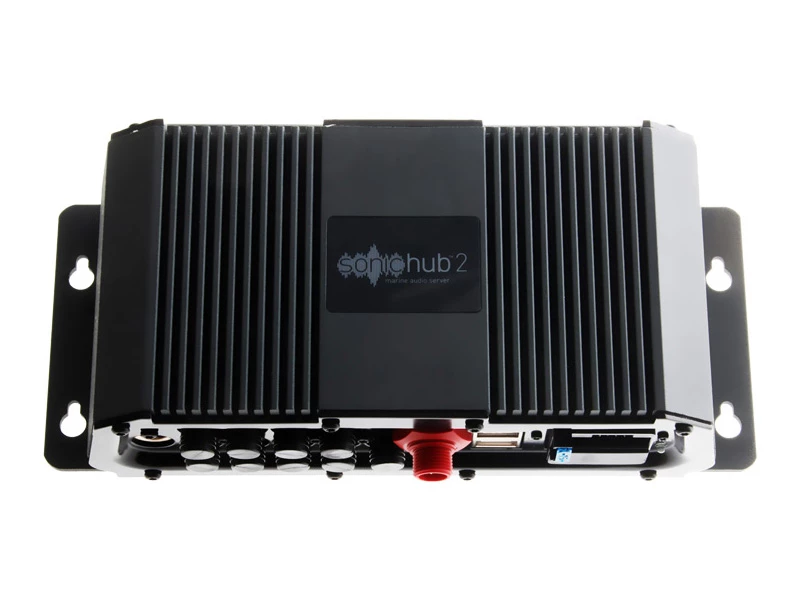

Lowrance SonicHub2 Marine Audio Module

Play music from your MFD

The Lowrance SonicHub2 Marine Audio Module
features integrated Bluetooth that allows you to stream and play
music from your smartphone, tablet or USB drive to your
multifunction display.

When connected to a NMEA 2000 network, the SonicHub2 module allows
you to control onboard music components from any compatible
multifunction display on the network. The system follows the
standard NMEA 2000 audio/entertainment protocol, features two USB
ports for connecting and charging multiple devices and supports USB
video playback. The SonicHub2 module works with Android devices and
IOS devices with the Lightning connector.

Lowrance SonicHub2 Marine Audio Module
Features:

• Streams Bluetooth audio from a smartphone or tablet
• Integrated AM/FM radio tuner (AM/FM antenna required)
• 50W x 4 amplifier
• NMEA 2000 connection using the newly adopted standard NMEA 2000 audio/entertainment protocol
• Dual USB ports for connecting and charging multiple devices
• Video output via Composite RCA for playing video files from a USB drive
• Pre-amp Zone 3 output
• Pre-amp subwoofer output
• Dual Stereo AUX input (AUX1, AUX2)
• Works with Lowrance HDS Gen3 and HDS Gen2 Touch; Simrad NSS
  evo2, NSO evo2 and GO7; B&G Zeus2, Zeus2 Glass Helm and Vulcan
  7
• Dimensions: 225 x 107 x 62 mm

Lowrance SonicHub2 Marine Audio Module
Specifications:

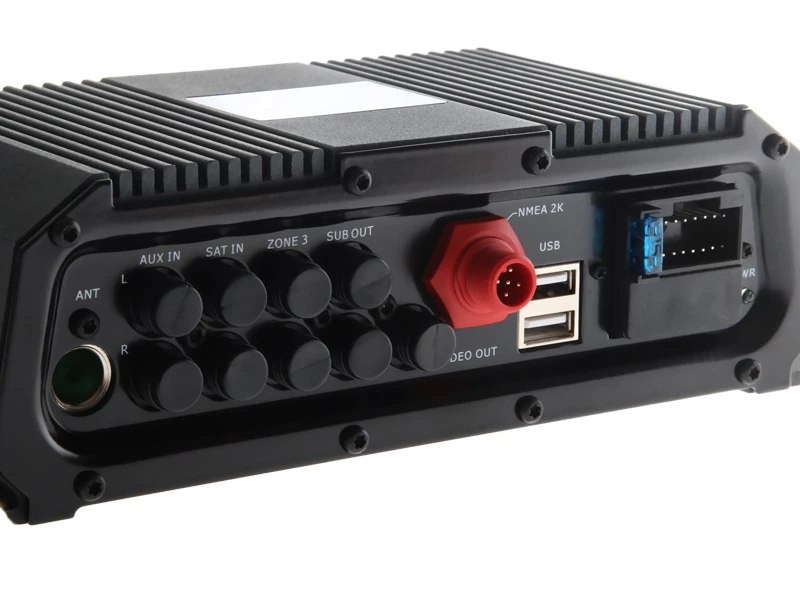

Aux Input/Outputs

• AUX 1 In: SAT IN (AUX 2 In); RCA Output; Subwoofer
  Out:
• Line inputs 2V peak-to-peak.
• High level inputs max 6V, 2V Typical
• Video out = PAL and NTSC
• Antenna Connection: SonicHub2 input: Female, External cable
  required: Male
• USB/MP3: Industry standard

Audio Amplifier

• Output per channel: 50W
• Total Output: 200W
• Power supply requirements: 10 to 16 VDC
• Current (Muted): <250 mA
• Current (Max): <20A
