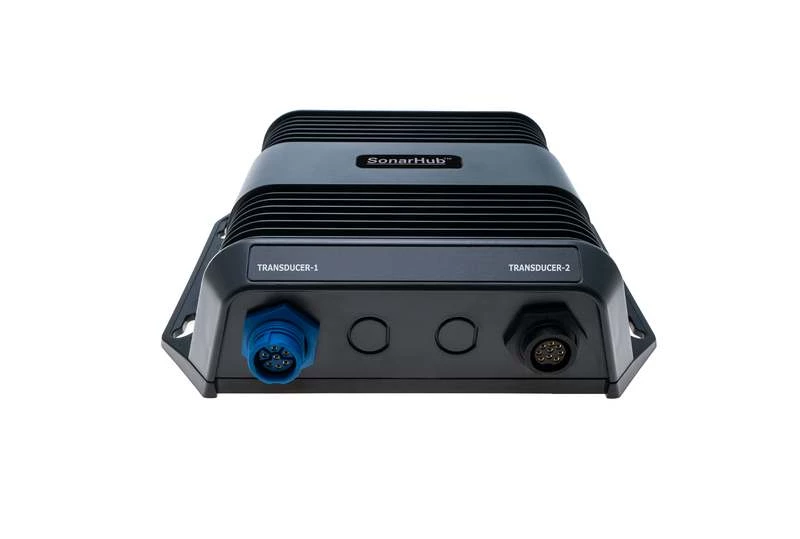

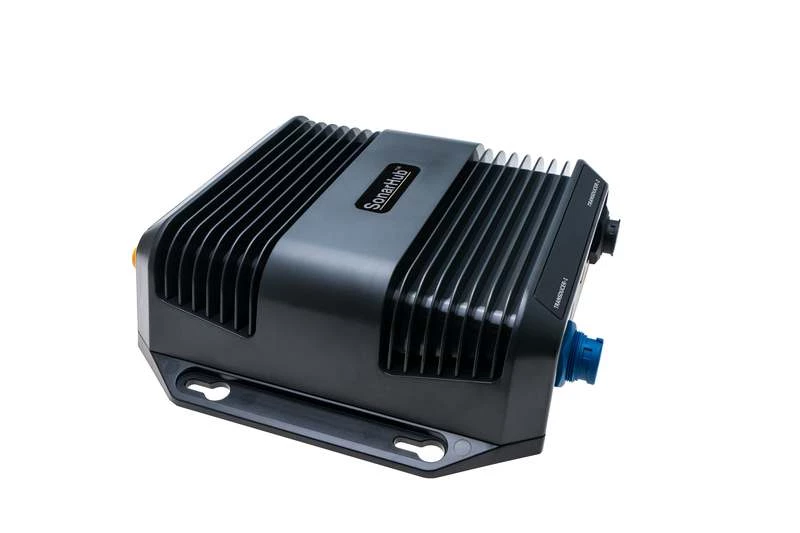

Lowrance SonarHub Sounder Module

Make the best out of your Lowrance fishfinder/chartplotter

The Lowrance SonarHub Sounder Module is an easy-to-install, plug-and-play, all-in-one network solution — the SonarHub Sounder Module makes it easier than ever to connect to the latest sonar technologies for Lowrance HDS, Simrad and B&G multifunction displays – including CHIRP, StructureScan HD imaging and ForwardScan– as well as the new Lowrance SpotlightScan bow-mounted solution for HDS Gen2 models.

Note: This listing is for the Lowrance SonarHub Sounder
Module only. Transducers sold separately.

Lowrance SonarHub Sounder Module Features:

• Compact, all-in-one sonar module
• Delivers CHIRP sonar, StructureScan HD and ForwardScan technologies

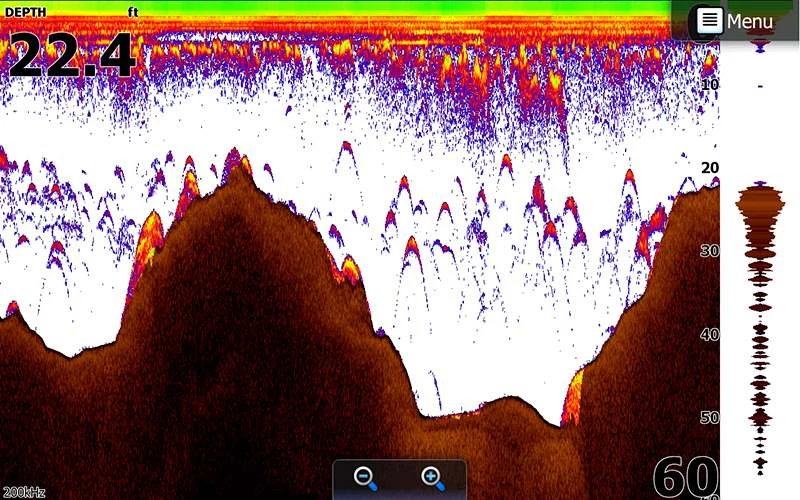

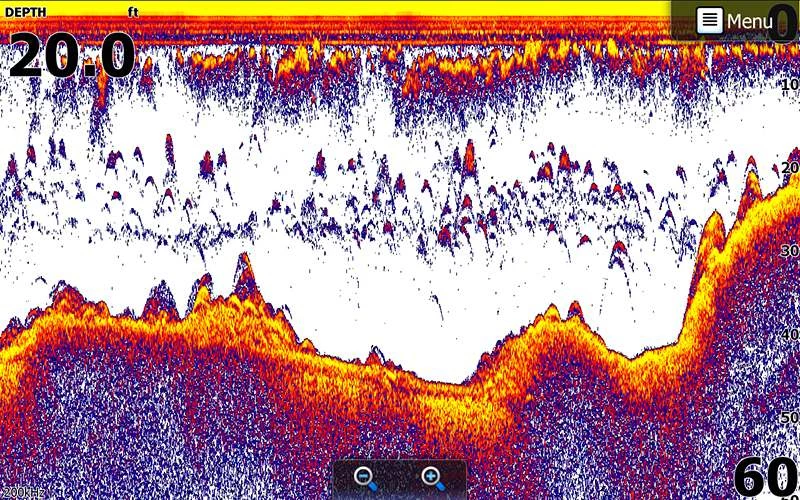

• CHIRP sonar delivers extremely efficient pulse generation that provides improved target resolution and noise rejection, as well as wide coverage for perfect arches that clearly identify fish targets
• StructureScan HD offers best-in-class, side-scanning range and resolution, plus DownScan Imaging to provide crystal-clear, picture-like views of what’s beneath your boat
• ForwardScan** Know what lies ahead, with Simrad ForwardScan. This forward-looking sonar provides a clear two-dimensional image of the bottom in front of your vessel, allowing you to navigate shallow or poorly-charted waters with confidence.
• Optional transducers include all Lowrance blue-connector transducers, as well as all Airmar single channel CHIRP transducers and existing StructureScan HD transducers.
• Compatible with SpotlightScan surround-scanning sonar transducers.*
• Plug-and-play compatibility with Lowrance HDS Gen1 (not including SpotlightScan and CHIRP sonar), HDS Gen2 and Gen2 Touch fishfinder/chartplotter models, as well as Simrad and B&G multifunction displays.

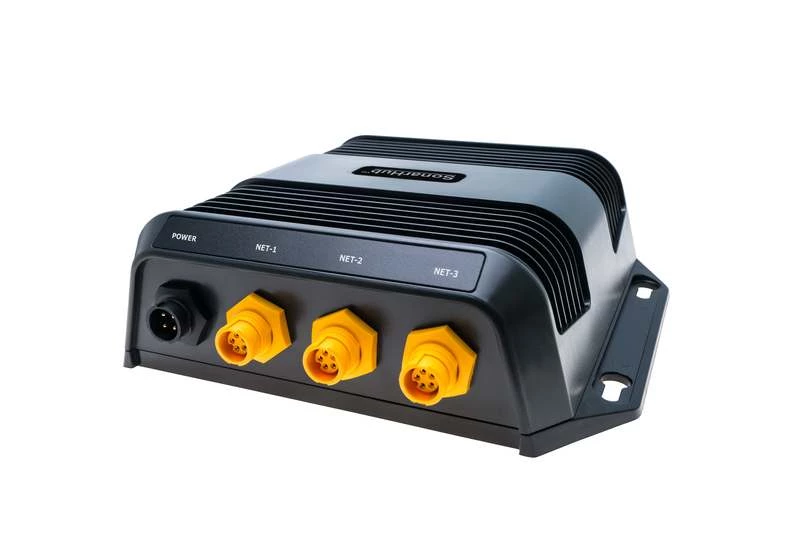

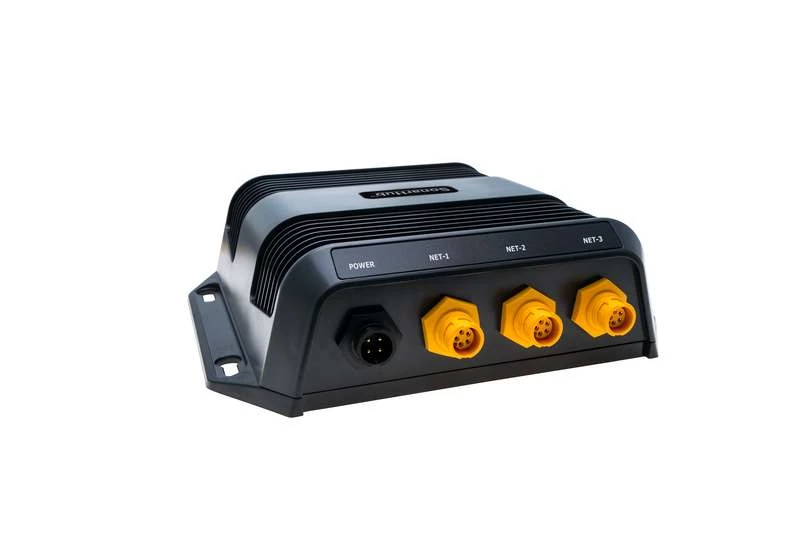

• Three built-in Ethernet ports allow for quick and convenient networking without the need for an extra Ethernet networking module.
• Supported by Advantage Service programs for B&G, Simrad and Lowrance
• High performance sonar module including both StructureScan HD/Forward scan + CHIRP sonar***

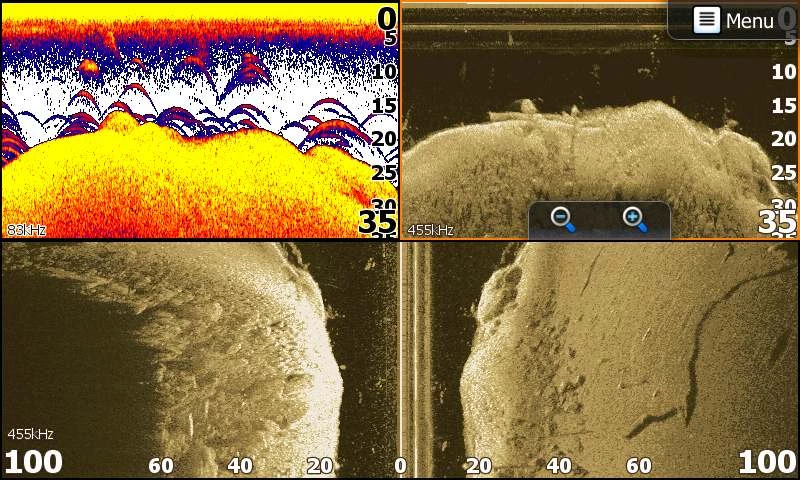

• View DownScan Imaging, Side Scan Imaging plus a single frequency 50, 83, or 200Khz all at one time with a single SonarHub
• While using CHIRP sonar SideScan and Down Scan will not be available

Notes:
*SonarHub Sonar Module not required for SpotlightScan functionality with HDS Gen2 Touch displays.
** SonarHub may require a software update. Check the SonarHub web page for the latest version
***Only once source can be used at a time
