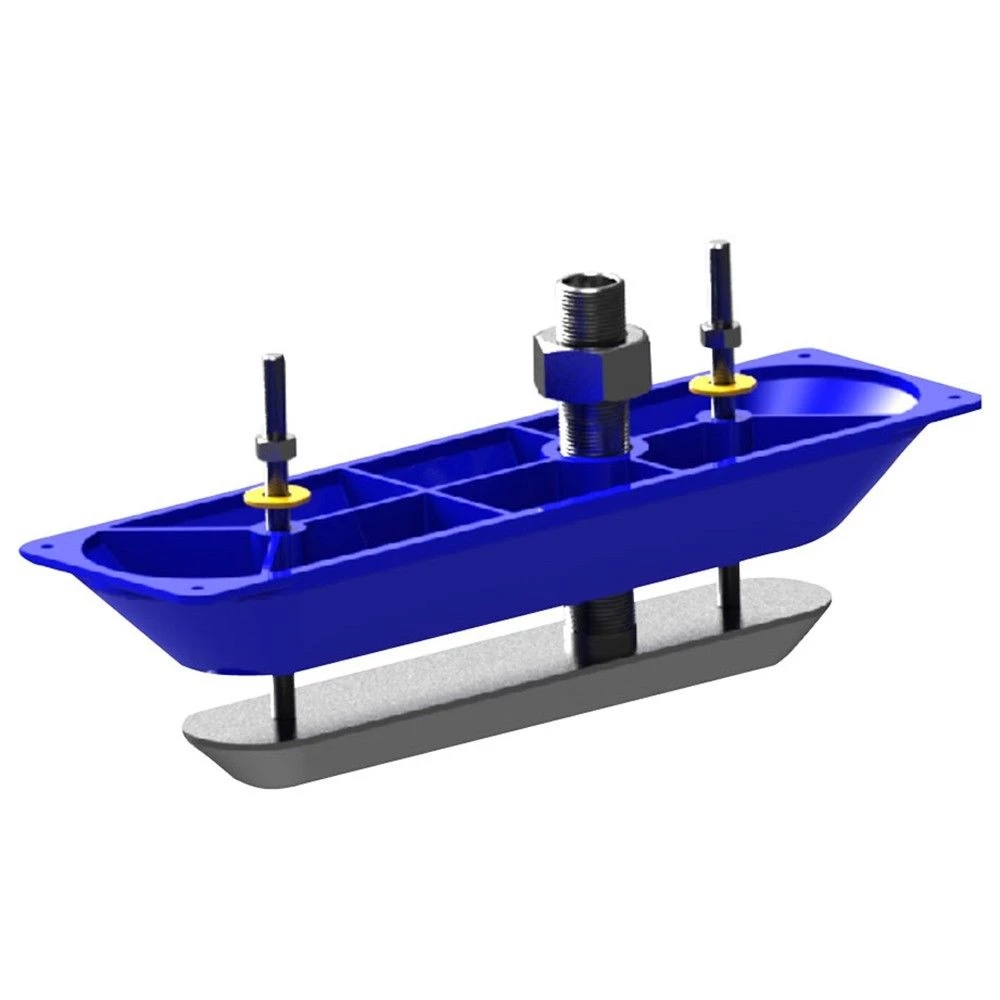

Lowrance/Simrad LSS-2 StructureScan HD Stainless Steel Thru-Hull Transducer

High performance transducer

The new Lowrance/Simrad LSS-2 StructureScan HD Stainless
Steel Thru-Hull Transducer is made for the the
StructureScan HD Sonar Imaging product line to provide more range
and greater resolution. It delivers extreme target detail, bottom
discrimination and bait and game fish separation at depths to 300
ft/92 m and a wider range of 600 ft/183 m side-to-side coverage.
It’s packed with an enhanced dual-frequency element array that
operates at 455 kHz and 800 kHz.

This stainless steel transducers is made exclusively for Lowrance
StructureScan HD and StructureScan systems. It’s resistant to the
electrical forces in the environment where it will be used. Each
feature a low-profile design that minimises drag; provide exclusive
3-channel beam, port and starboard SideScan plus DownScan Imaging
technology; includes a high-performance fairing that will give you
Structure performance at speeds up to 35 mph; and comes with a 30
ft/9 m transducer cable.

Lowrance/Simrad LSS-2 StructureScan HD Stainless Steel
Thru-Hull Transducer Features:

• Thru-hull Stainless steel transducer for StructureScan HD
  Sonar, providing more range and greater resolution
• Thru-hull Stainless steel version delivers extreme target
  detail, bottom discrimination and bait and game fish separation at
  depths to 300′ and a wider range of 600′ side-to-side
  coverage
• Enhanced dual-frequency element array that operates at 455kHz
  and 800kHz
• Resistant to the electrical forces in the environment where it
  will be used
• Low-profile design minimises drag, provide exclusive
  three-channel beam, port and starboard SideScan plus DownScan
  Imaging technology
• Includes a high-performance fairing that will give you
  Structure performance at speeds up to 35 mph
• 30′ transducer cable

Lowrance/Simrad LSS-2 StructureScan HD Stainless Steel
Thru-Hull Transducer Specifications:

• Product code: 000-11459-001
• Style: Thru-hull
• Cable Length: 30′ (requires 26mm diameter hole for
  plug)
• Monitors: Depth and Temperature
• Material: Stainless steel
• Transmit Power: 500W (RMS)
• Frequency: Enhanced 455/800kHz
• Max. Depth: Sidescan: 600′ @ 455kHz; 200′ @ 800kHz; Downscan:
  300′
• Max. Sidescan Speed: Max. 35mph; Marks Objects to 15mph;
  Optimum Speed 10mph or less
• Max. Downscan Speed: Max. 55mph; Marks Objects to 35mph;
  Optimum Speed 10mph or less
• Hull Deadrise: 0° to 12°
