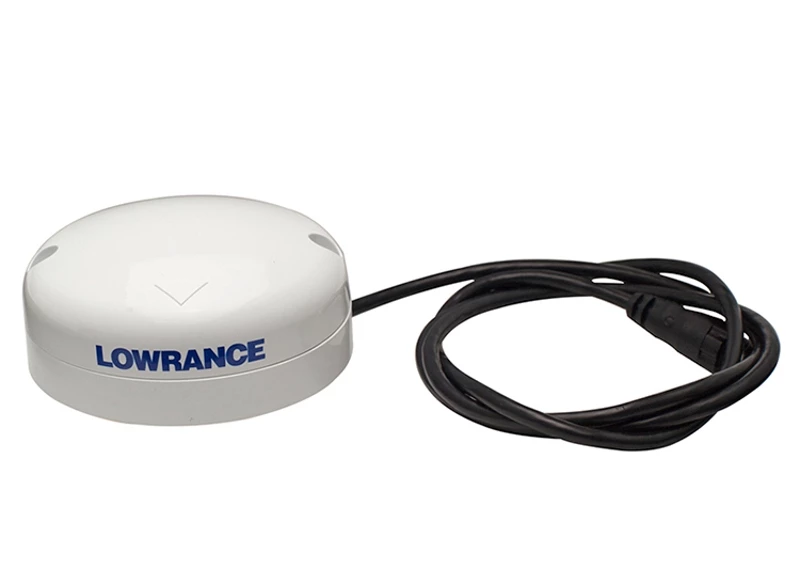

Lowrance Point 1 GPS Antenna

Waterproof and easy to mount

The Lowrance Point 1 GPS Antenna is the ideal position and heading device. The Point-1 provides extremely accurate and rapid boat position and speed updates. In addition – unlike other position-only antennas – the Point-1 provides heading for accurate boat direction at any speed and for radar/chart overlay.The Point-1 easily connects to any HDS Gen2, HDS Gen2 Touch or Elite-7 display or any NMEA 2000 network. It is fully waterproof and can be pole or surface mounted on any boat.

Lowrance Point 1 GPS Antenna Features:

• NMEA 2000 position and heading sensor
• Supports GPS and GLONASS, Galileo-capable with future software
  update
• Supports SBAS including WAAS/EGNOS/MSAS
• 10 Hz updates for smooth and accurate location
• Integrated electronic compass provides 10Hz heading for chart
  stabilisation and radar overlay
• Accurate course over ground even at low speeds
• Compact, rugged design for all marine environments and fully
  waterproof
• Includes spat/pole mount
• Not recommended for use with MARPA functionality of radar
• Easily connects to any HDS Gen2, HDS Gen2 Touch or Elite-7
  display or any NMEA 2000 network

Lowrance Point 1 GPS Antenna Specifications:

• Part: 000-11047-002
• NMEA 2000 Certified
• Connectors: NMEA 2000 Micro C
• Power supply (supply voltage): 9-18v
• GPS receiver channels: 32
• Heading accuracy: 3 degrees
• Horizontal accuracy: 5m
• Rate of turn: 3 degrees
• Satellite reacquisition:
• Start-up time:
• Cold Start:
• Pitch/roll angle: @30 degrees 1 grade error
• Diameter: 90mm
• Height: 38mm
• Weight 0.3lbs (approximately)

What’s in the Box:

• Antenna/4′ cable
• T connector
• Spat/pole mount
• Mounting hardware
• Gasket seal
• Install guide

Note: If you do not have an existing
NMEA2000 network you will require an NMEA 2000 Starter Kit to use
this product.
