Lowrance Outboard Autopilot Hydraulic Pack

An extra pair of hands when you need it

Providing automatic steering for hydraulic-steer outboard motors, the Lowrance Outboard Autopilot Hydraulic Pack for Lowrance High Definition System (HDS) features Lowrance SmartSteer control which conveniently steers to a heading, waypoint or route.

This pack comes with everything you need to fit an autopilot to your hydraulic-steer outboard motor; the Outboard Pilot lets you focus on fishing activity while keeping the boat on course. When connected to an HDS Gen2 or Gen2 Touch, the Outboard Pilot can steer to a waypoint or along a route, select a turn pattern or simply hold a constant heading.

The Lowrance SmartSteer user interface allows you to easily switch between electric-steer, trolling-motor control and outboard motor control directly from your HDS display. And, with your HDS display, you can easily convert trails to routes – so you can retrace a previous track and
get your boat back to the dock from your fishing area.

Lowrance Outboard Autopilot Hydraulic Pack Features:

• Steer your outboard motor to a heading, waypoint, route or
  cursor, with control from your HDS Gen2 display
• New Lowrance SmartSteer interface provides control of both your
  hydraulic-steer outboard motor, as well as the MotorGuide Xi5
  Pinpoint electric-steer trolling motor
• “One-touch” route creation from saved trails
• Repeat your path with automatic turn patterns
• Recommended for single-outboard setups, on boats that are 30
  feet and less, in length
• VRF (Virtual Rudder Feedback) – simplifies pilot installation –
  eliminating the need for a rudder position sensor
• Easy setup – straightforward guide steps you through first-time
  install
• Easy-to-install, plug-and-socket connection – with no complex
  terminal wiring
• Designed for outboard engines
• Small boat Autopilot pack for lake or coastal conditions for
  vessels with Hydraulic Steering

Lowrance Outboard Autopilot Hydraulic Pack Specifications:

• Warranty: Two year limited
• Power Supply (Supply Voltage): 12v DC
• Water Resistance: IPx5
• Dimensions (L x W x H): 210 x 188 x 55mm
• Weight: 1kg
• NMEA Input: Micro-C
• Autopilot/Auto-Steering: NAC-1 drive output: 12V, Max 16 Amps
  (instantaneous)

What’s in the box?

• NAC-1 Autopilot Computer 000-11769-001

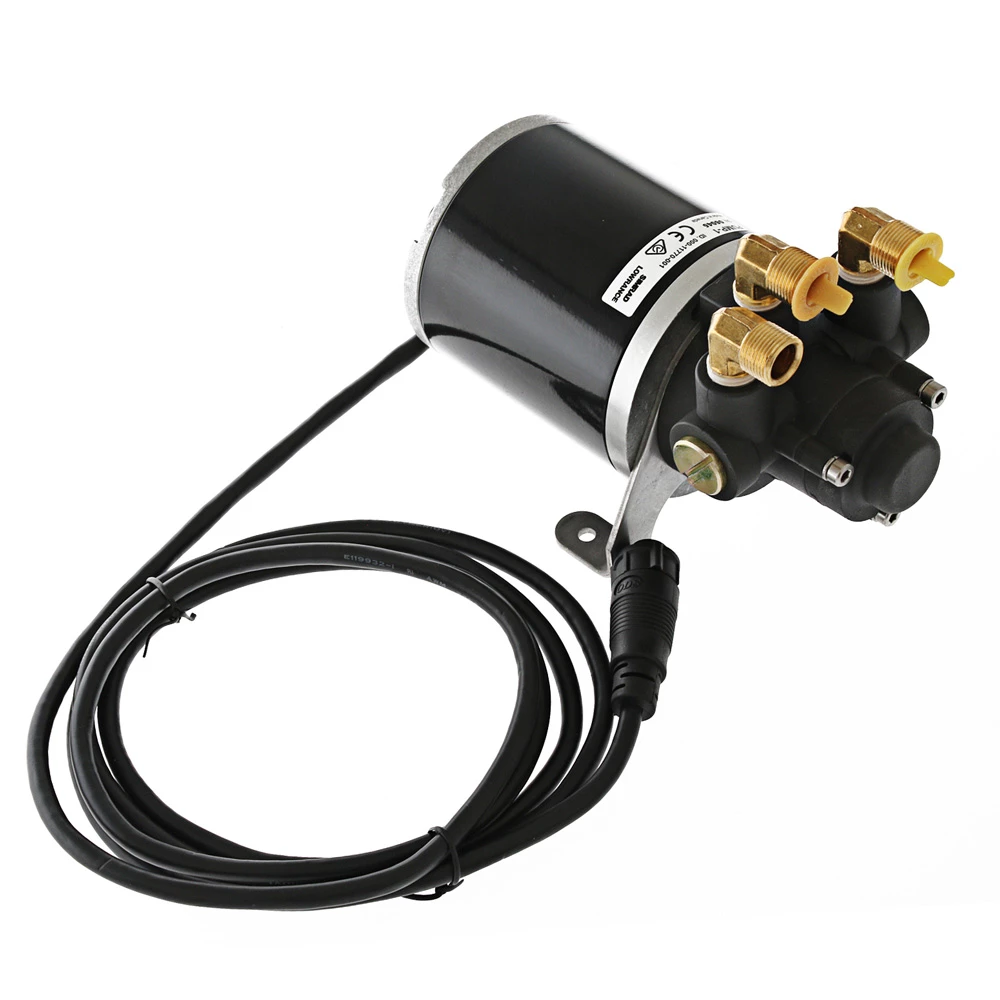

• PUMP-1 Hydraulic Pump 000-11771-001

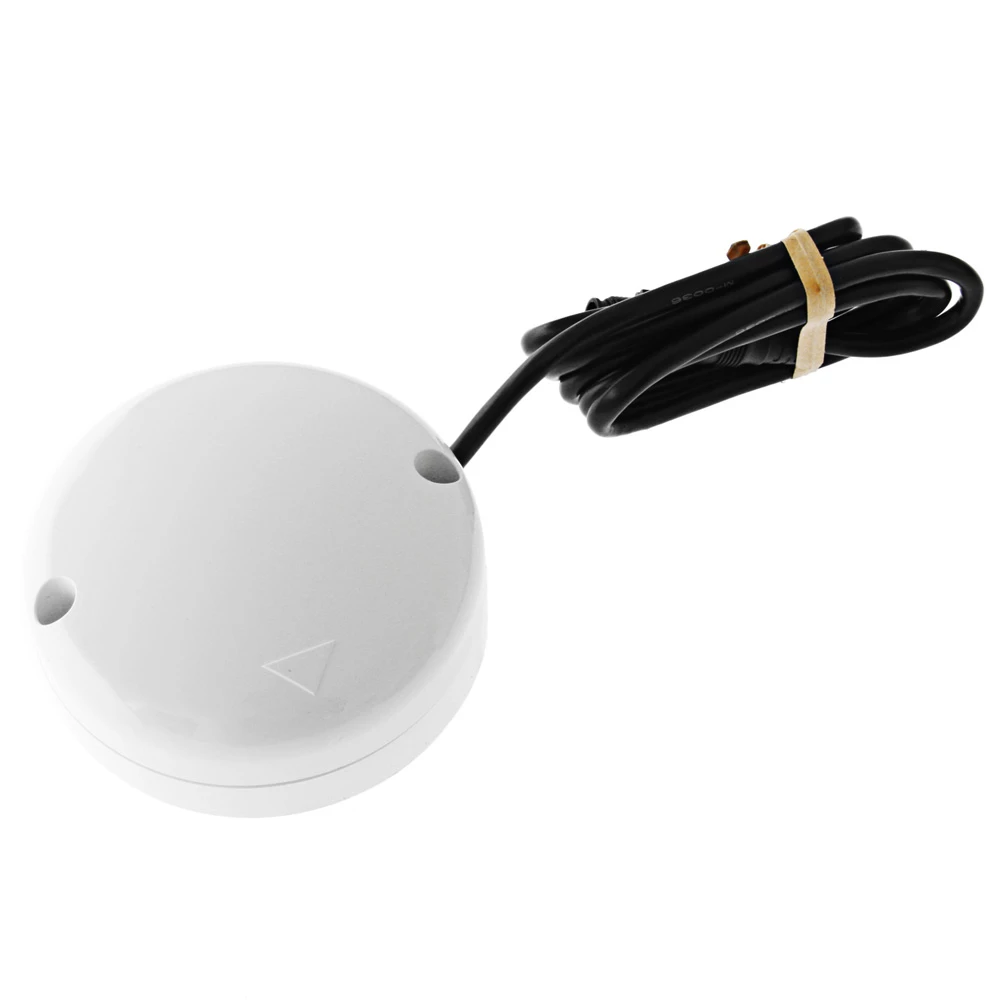

• Point-1 Heading and GPS Sensor 000-11047-001

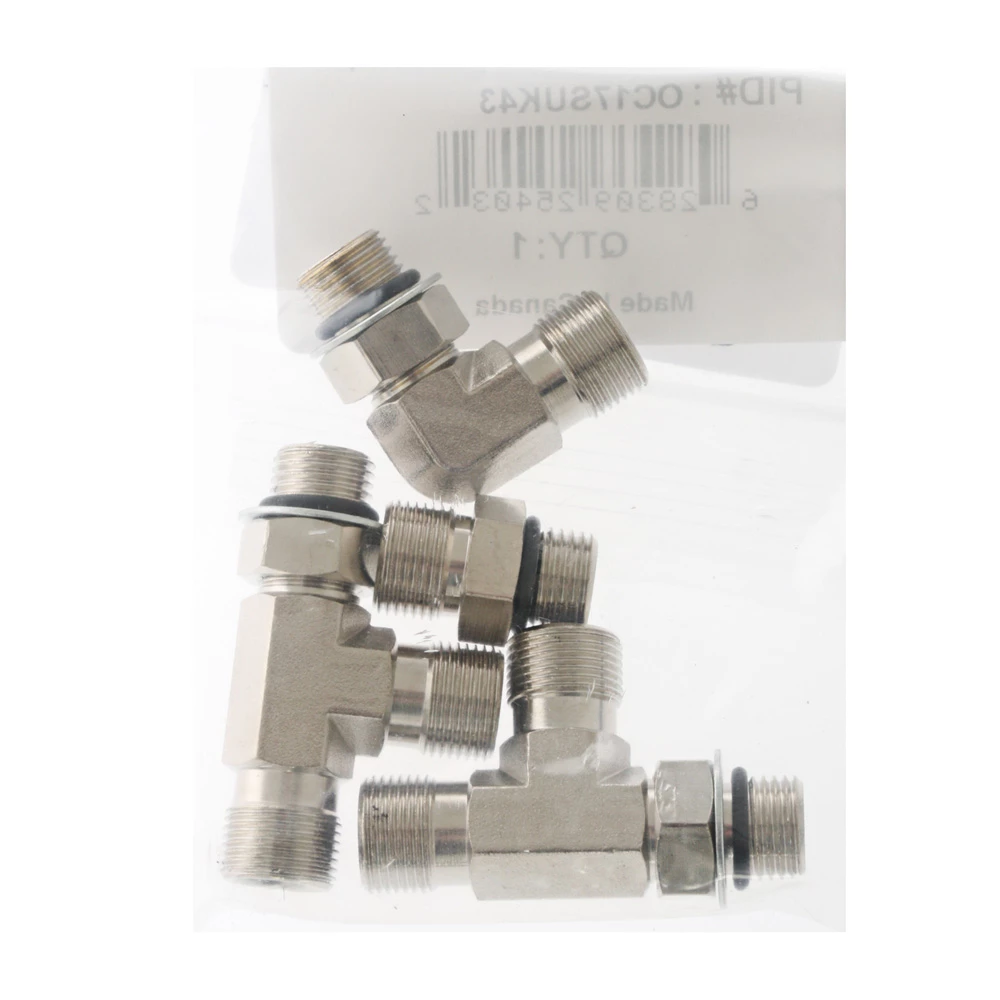

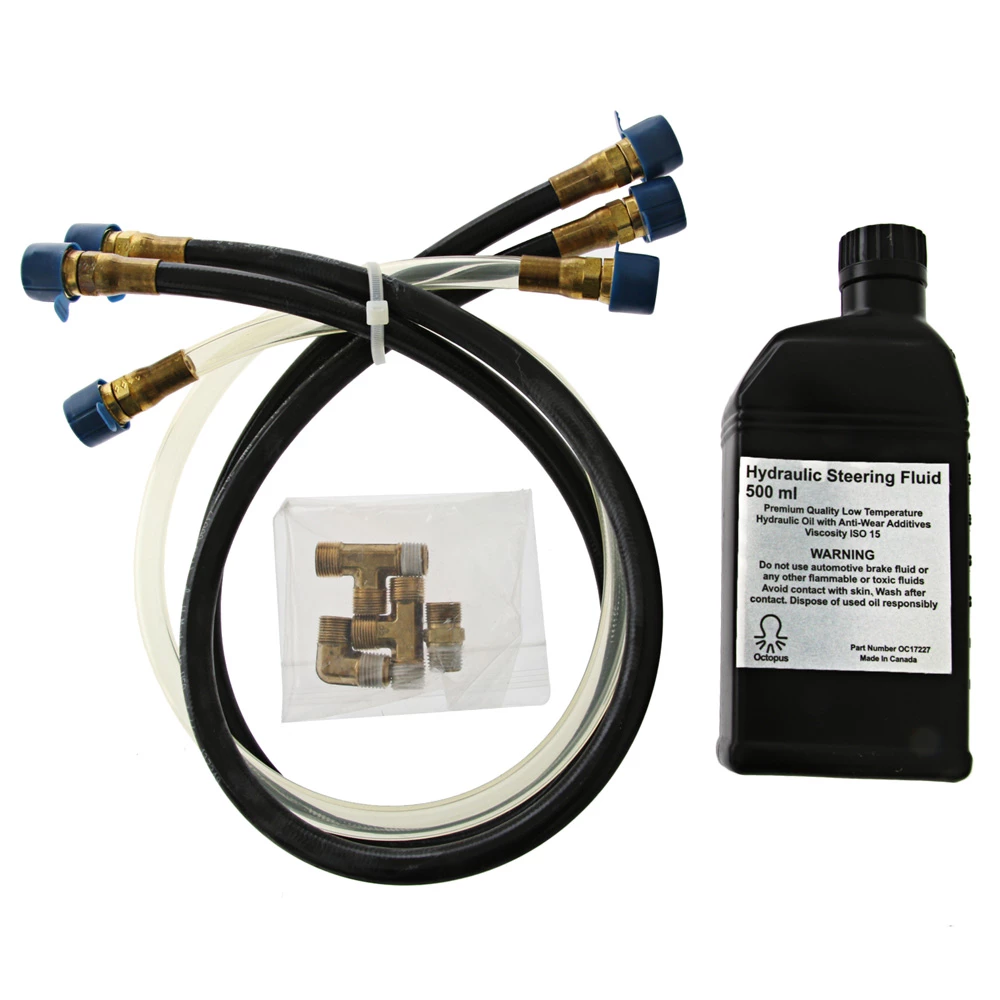

• Hydraulic Fitting Kit
• Auto/Standby Button

Note: The Lowrance Outboard Pilot is
recommended for single outboard set-ups, on boats that are 30 feet
and less, in length.
