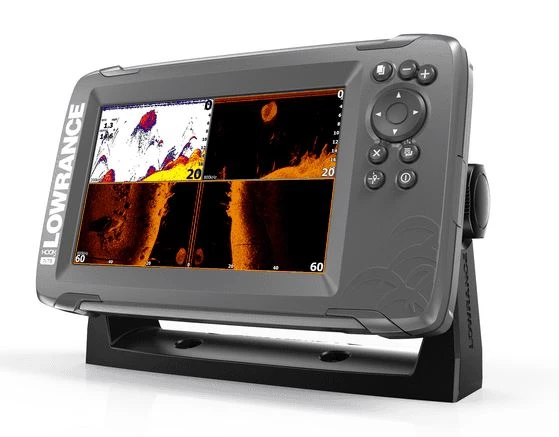

Lowrance HOOK2 7x CHIRP Fishfinder/GPS Tracker With TripleShot Transducer

Plug and Fish

The Lowrance HOOK2 7x CHIRP Fishfinder/GPS Tracker
helps you have a more enjoyable day on the water by removing the
hassle of making adjustments with a simple menu layout, easy access
to key features and game-changing Lowrance Autotuning sonar. You’ll
be free to focus on fishing with Autotuning sonar, a new feature
that actively adjusts sonar settings as fishing conditions change.
Just plug it in and fish. Yes, it’s that easy!

Tripleshot 3-in-1 sonar with High CHIRP, SideScan and DownScan
Imaging
With the Lowrance HOOK2 7x CHIRP Fishfinder/GPS
Tracker, you’ll cover more water in less time and
fish-holding structure more easily with Tripleshot 3-in-1
sonar.TripleShot makes it easier to stay on the fish, delivering
the best traditional sonar views and lifelike images of
fish-holding structure beneath and beside your boat.

Autotuning Sonar
At the heart of the HOOK2 Fishfinder series is Lowrance Autotuning
sonar — a new, game-changing solution that actively corrects sonar
settings for the best image possible, eliminating the need for
manual adjustments. For those who want to step out of the
Autotuning mode and tweak the sonar settings, a simple menu layout
and easily accessible features make this a quick and easy task.

Built-in GPS Plotter
Save waypoints, follow trails and navigate to your favourite
fishing spot with a simple and accurate GPS Plotter.

Easy to Operate
Ready for the water right out of the box and easily installed, the
series’ smartphone-like menu creates instant familiarity for
anglers toggling between pre-programmed pages. HOOK2 offers
side-by-side displaying of different pages and allows you to simply
and quickly customise pages to your personal preferences.

With many anglers seeking to concentrate more on fishing rather
than continuously tinkering with adjustments, the HOOK2 Series’
sonar has been fully automated. The HOOK2 eliminates the hassle of
fine-tuning sonar with one sonar setting to create more visible
fish arches while still maintaining clarity and target
separation.

Lowrance HOOK2 7x CHIRP Fishfinder/GPS Tracker
Features:

• 7-inch SolarMAX Display
• Automated sonar settings
• Easy to find fish with double the sonar coverage of traditional
  fishfinders
• Easiest-to-use menu and dedicated keypad
• Optimised keypad with one-touch access to key features
• Lowrance Tripleshot 3-in-1 Sonar with High CHIRP, SideScan and
  DownScan Imaging
• Simple and accurate Built-in GPS Tracker
• Easy front-dash or quick-release bracket mount

Lowrance HOOK2 7x CHIRP Fishfinder/GPS Tracker
Specifications:

• Lowrance part number: 000-14022-001
• Display size: 7.0in (178mm)
• Display resolution: 800 x 480
• Display type: Colour TFT
• Sonar broadband frequency: 200 kHz/High CHIRP
• Sonar DownScan/SideScan frequency: 455/800 kHz
• Sonar Broadband max power: 200w RMS
• Sonar DownScan/SideScan max power: 500w RMS
• Sonar Broadband max depth: 500ft (152m)
• Sonar DownScan/SideScan max depth: DownScan: 300ft (91.4m),
  SideScan: 300ft (91.4m) Left and Right
• Sonar Alarm: Shallow, Deep, Arrival, Depth
• GPS type: Internal high-sensitivity WAAS + EGNOS +
  MSAS
• Waypoints: 1000*
• Routes: 6 routes (150 max. route point per route) – waypoints
  and Routes share the same memory, saving more of one means less of
  the other
• Trails: 7 trails (2,900 max. trail points)
• Power supply: 10-17 vDC (12V systems)
• Waterproof : Yes IPX-7
• Dimensions (WxHxDepth): 9.3 x 6.46 x 3.3iin (236 x 164 x
  84mm)

What’s in the Box:

• Lowrance HOOK2 7x Fishfinder Unit
• Gimbal bracket and knobs for 7in Lowrance
• Corner Clips
• TripleShot Skimmer Transducer
• TripleShot Transom bracket
• Power cable
• 1 x fuse and fuse holder

Note: HOOK2 X models with GPS Tracker
have no chart card functionality. Waypoints and Routes share the
same memory, saving more of one means less of the other
