Lowrance HOOK2-7 CHIRP GPS/Fishfinder SplitShot Package

World’s easiest GPS/Fishfinder Combo

Cover more water in less time and find fish and fish-holding
structures more easily with the new Lowrance HOOK2-7 CHIRP
GPS/Fishfinder SplitShot Package. The HOOK2-7 offers
simple menus, easy access to key functions and Autotuning sonar.
Ideal for small to medium sized trailer boats, this package comes
with the new, easy to use Lowrance HOOK2 7″ unit with built-in
C-MAP NZ/AU Chart, SplitShot 2-in-1 transducer with wide-angle,
High CHIRP coverage and DownScan Imaging. Just plug it in and fish.
Yes, it’s that easy.

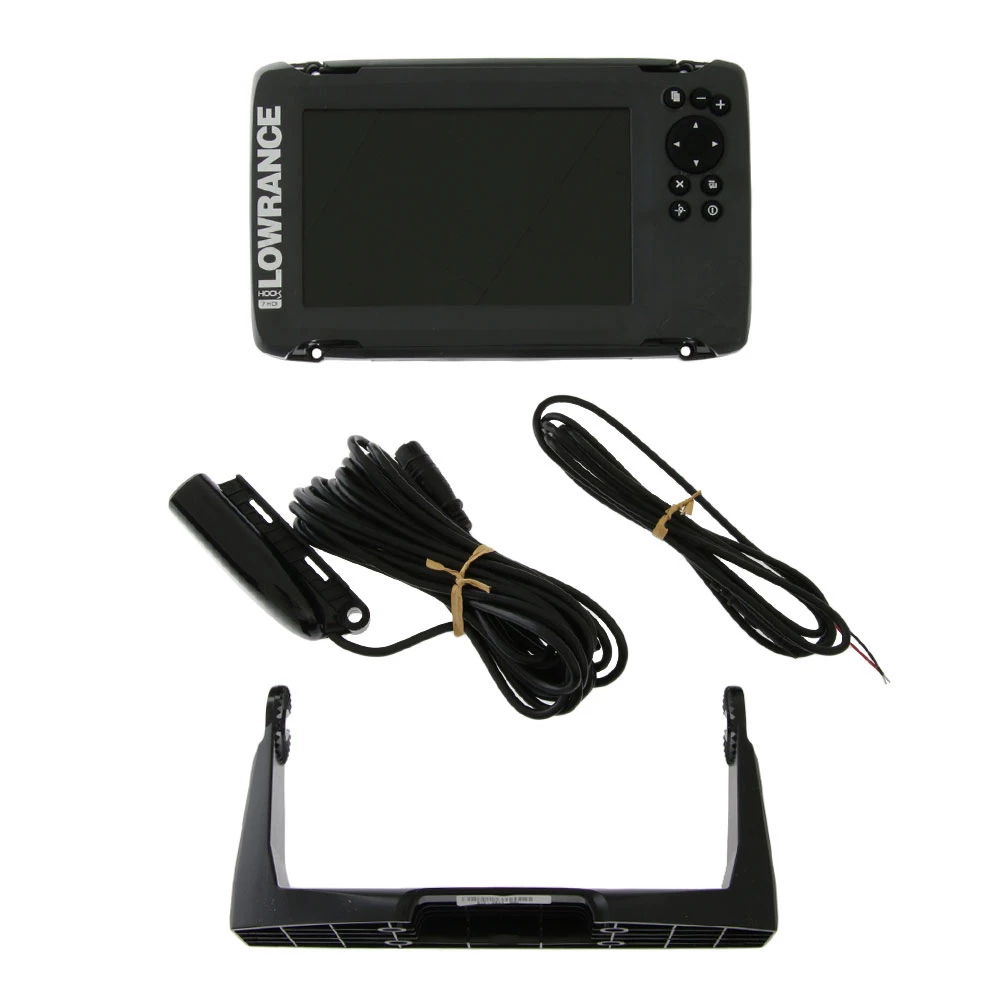

Package includes:

• Lowrance HOOK2-7 7″ CHIRP GPS/Fishfinder Combo Unit with
  built-in C-MAP NZ/AU Chart
• Lowrance SplitShot Skimmer Transducer (High CHIRP and DownScan
  Imaging)
• Installation hardware

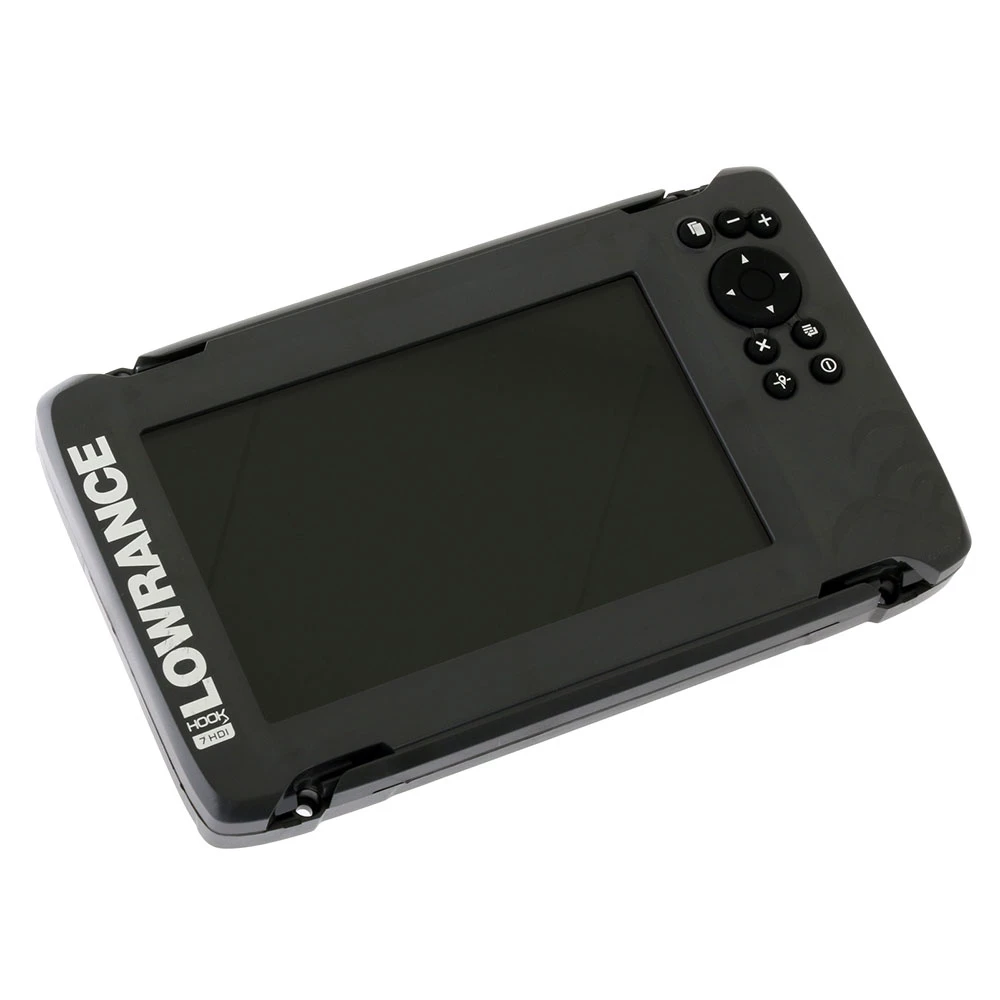

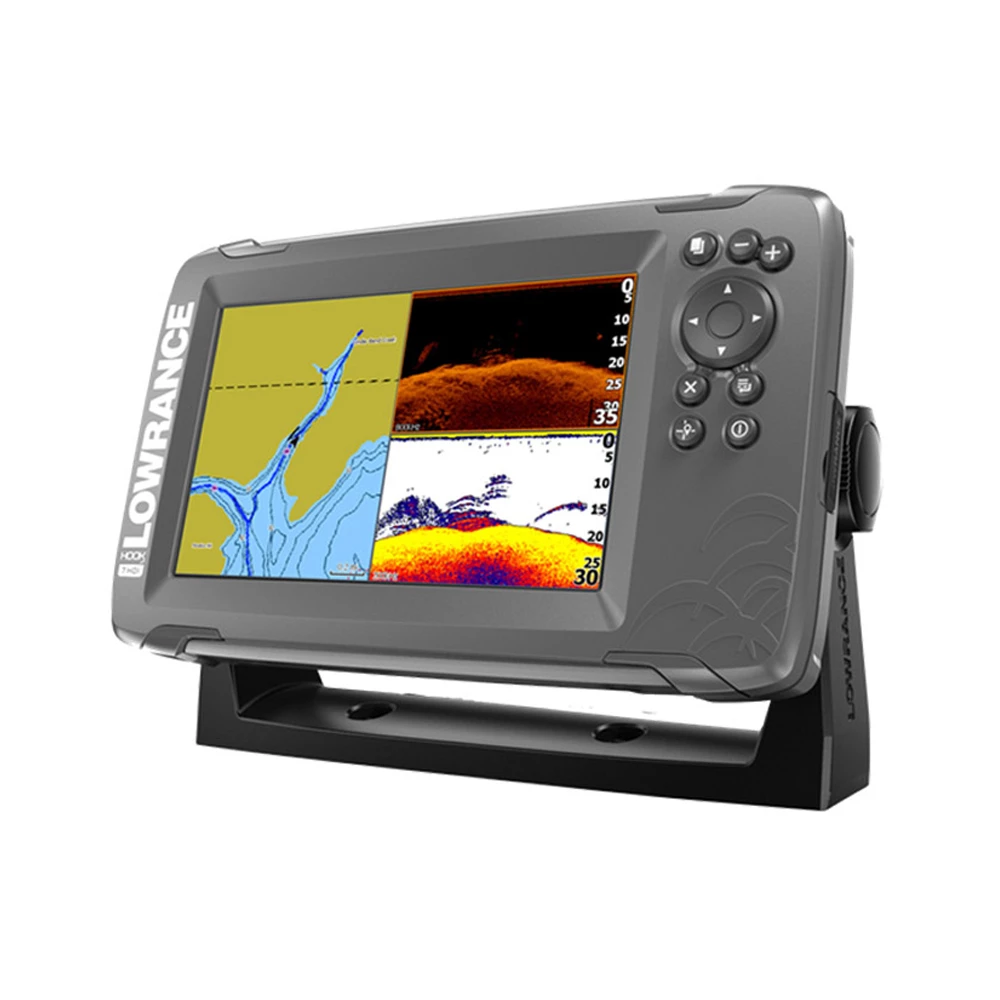

The Fishfinder/Chartplotter Display
Unit
The Lowrance HOOK2-7 CHIRP GPS/Fishfinder Combo is
designed with easy to use features and functions normally on
high-end fish finding gear without robbing the bank. The HOOK2-7
has a wider sonar cone for more than twice the sonar coverage of
traditional fish finders. This expanded coverage makes it easier to
see fish and track lures and bait as they fall through the
water.

Easy to Operate
Lowrance brings improved simplicity of operation with the HOOK2
Series. The HOOK2 eliminates the hassle of fine-tuning sonar, with
one auto-tuning setting to create more visible fish arches, while
still maintaining clarity and target separation.

Easy to Install
HOOK2 is easy to install right out of the box with, sonar included
and number of very simple installation options.

Easy to Navigate
HOOK2 features a built in enhanced base map from C-MAP and has the
option for upgraded mapping by C-MAP and Navionics.

Autotuning Sonar
The HOOK2-7 SplitShot helps you have a more enjoyable day on the
water by removing the hassle of making adjustments with a simple
menu layout, easy access to key features and game-changing Lowrance
Autotuning sonar. You’ll be free to focus on fishing with
Autotuning sonar, a new feature that actively adjusts sonar
settings as fishing conditions change. You just fish and let HOOK2
take care of sonar performance – performance powered by SplitShot
2-in-1 sonar.

The Transducer
Transom-mount transducers provide the clearest sonar returns by
gliding through the water without producing screen cluttering
cavitation. You’ll cover more water in less time with the
Lowrance SplitShot Skimmer Transom Mount
Transducer – thanks to its proven wide-angle traditional
and high CHIRP sonar, along with narrow high detail downscan
imaging. And what’s more this model comes complete with a mounting
bracket for protection against impact. Specifically designed for
Lowrance Hook² Models. Just plug it in and fish. Yes,
it’s that easy!

Lowrance HOOK2-7 CHIRP GPS/Fishfinder Combo
Features:

• 7-inch SolarMAX Display
• Automated sonar settings
• Easy to find fish with double the sonar coverage of traditional
  fishfinders
• Easiest-to-use menus
• Optimised keypad with one-touch access to key features
• Lowrance Splitshot 2-in-1 sonar with High CHIRP and DownScan
  Imaging
• Built-in, high-detail worldwide basemap
• Mapping options include C-MAP, C-MAP Genesis, Navionics and
  more
• microSD card slot

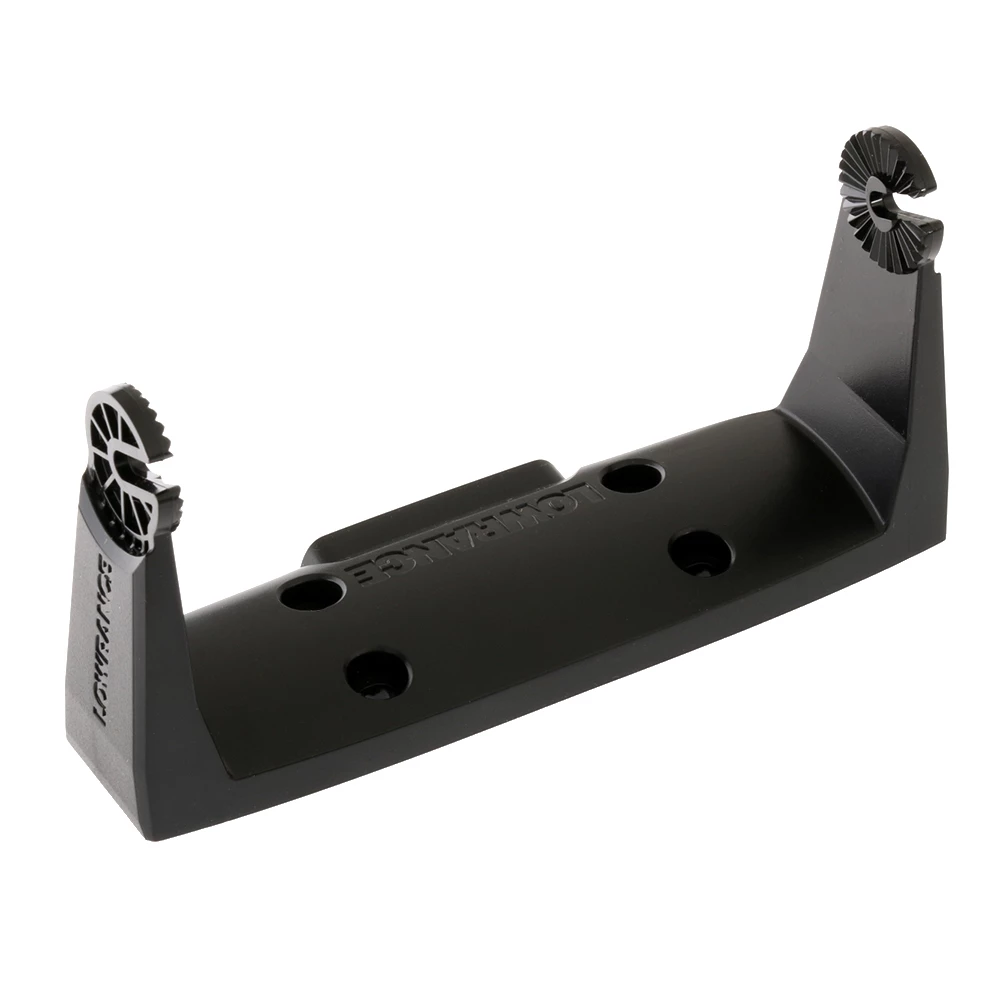

• Easy front-dash or quick-release bracket mount

Lowrance HOOK2-7 CHIRP GPS/Fishfinder Combo
Specifications:

Display

• Display Size: 7.0in (178mm)
• Display Resolution: 800 x 480
• Display Type: Colour TFT

Sonar

• Sonar Broadband Frequency: 200 kHz/High CHIRP
• Sonar DownScan/SideScan Frequency: 455/800 kHz
• Sonar Broadband Max Power: 200w RMS
• Sonar DownScan/SideScan Max Power: 500w RMS
• Sonar Broadband Max Depth: 500ft (152m)
• Sonar DownScan Max Depth: 300ft (91.4m)
• Sonar Alarm: Shallow, Deep, Arrival, Depth
• TrackBack: Yes
• Temperature Readings: Yes

GPS/Navigation

• GPS Type: Internal high-sensitivity WAAS + EGNOS +
  MSAS
• Waypoints: 3000
• Routes: 100
• Trails: 100 plots with up to 10,000 points per trail

Technical/Environmental

• Power Supply: 10-17 vDC (12V systems)
• Waterproof: Yes IPX-7
• Micro SD Card Slot: 1
• Width: 9.30in (236mm)
• Height: 6.46in (164mm)
• Depth: 3.3in (84mm)

Lowrance SplitShot Skimmer Transom Mount Transducer
Features:

• Part number: 000-14028-001
• Operating Frequency: 200kHz Wide Angle Sonar / High CHIRP /
  455/800kHz DownScan Imaging
• Sonar Beam Width: 40°
• Usable Depth: 80m+ Sonar/CHIRP, 50m+ DownScan
• Includes mounting bracket
• Specifically designed for Lowrance Hook² SplitShot
  Display Models
• Cable length: 6m
