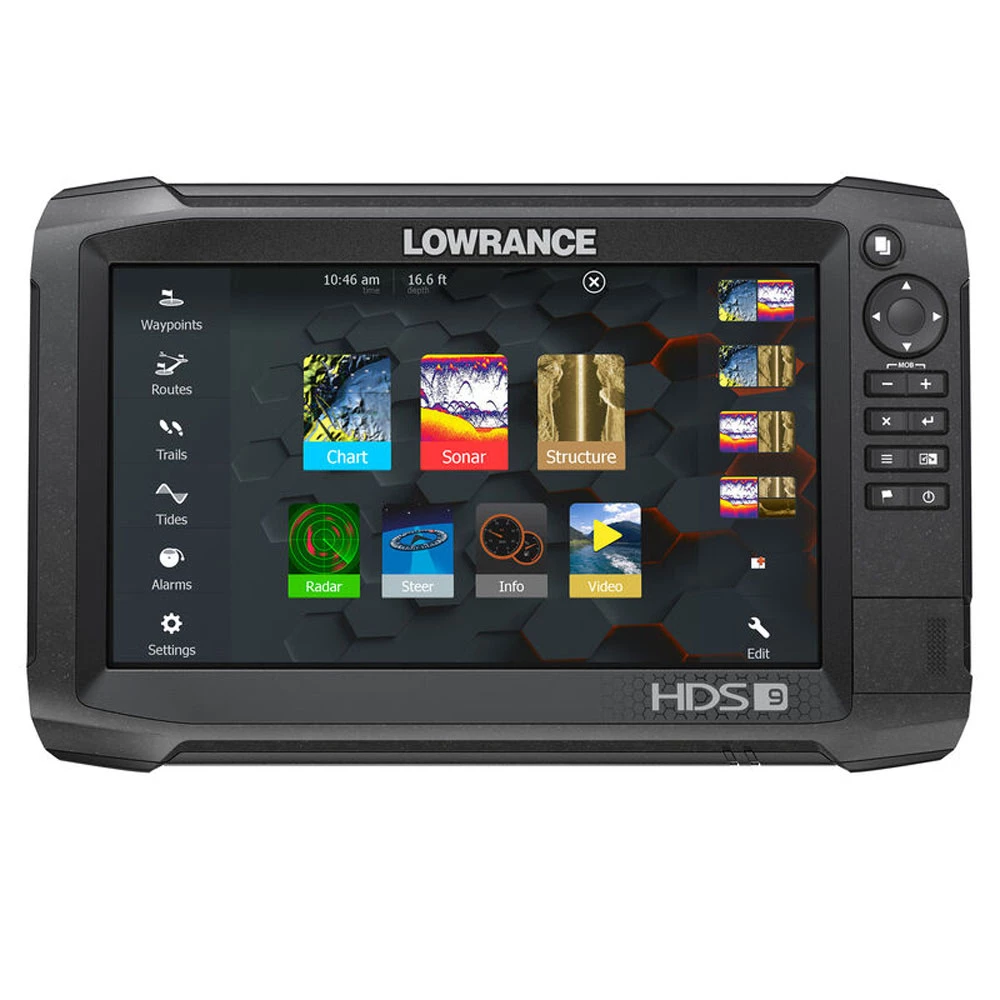

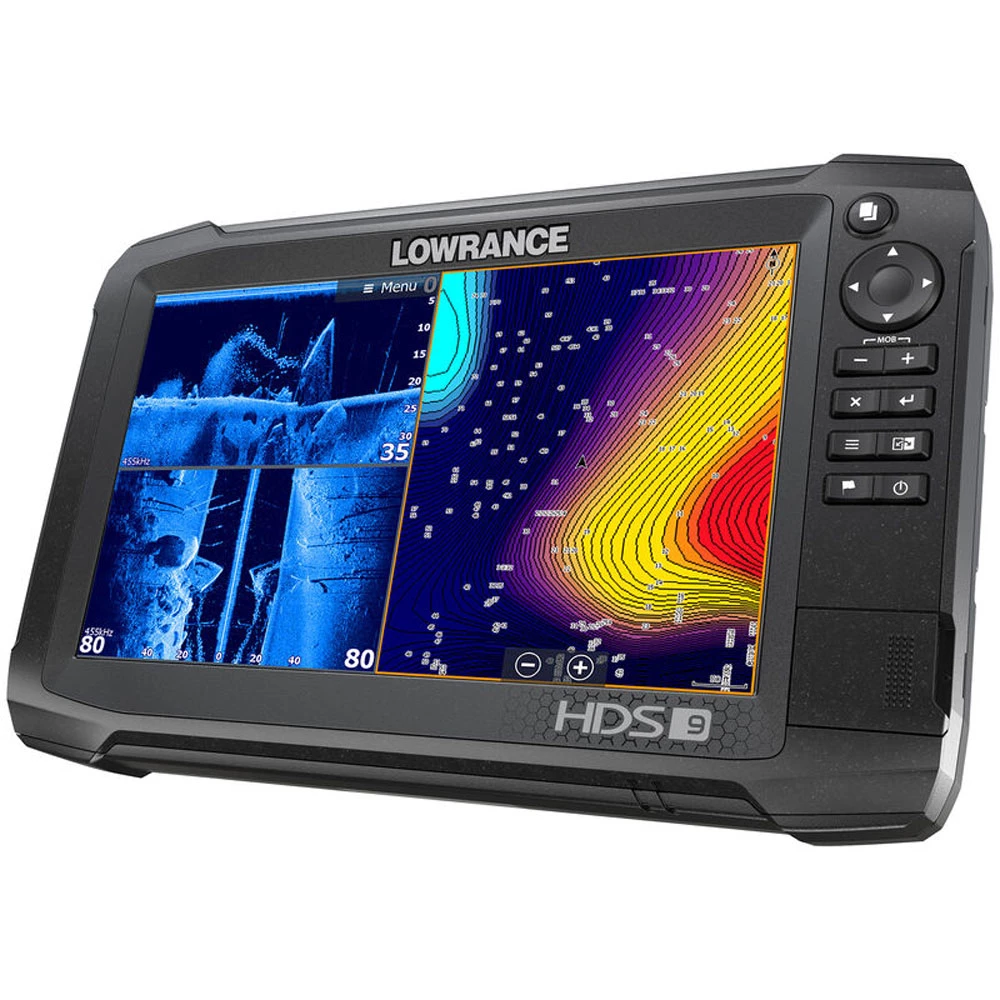

Lowrance HDS-9 Carbon ROW GPS/Fishfinder With Active Imaging 3-in-1 Transducer

Reveal the wonders of the deep

The Lowrance HDS-9 Carbon ROW GPS/Fishfinder brings you powerful performance and top-tier functionality with a bigger and brighter display. This series carries all the functions and features you have come to love with Lowrance, including the clearest SolarMAX HD screens, the fastest chart redraws and sonar updates, plus built-in Lowrance CHIRP sonar.

FishReveal Smart Target View

It features FishReveal smart target view to make fish easier to see. Combining traditional CHIRP sonar fish arches with superior, high-resolution imaging, you get fast and precise views of the ocean depths. It provides details you need like bottom structure and bait fish.

Dual-Channel CHIRP

The Dual-channel CHIRP feature makes sure you never miss fish with two CHIRP frequency channels

SolarMAX HD Display

All details are displayed in SolarMAX HD, giving you super bright, high-resolution imaging. This display is designed for any weather condition. With bright and clear images, you can view the screen from any angle even under direct sunlight. The ultra-responsive multi-touch screen display works even when the display is wet. What’s more, the display can be viewed and controlled from your smartphone or tablet using the free link app, making everything much more convenient! You can also easily build a system around the HDS-9 with its plug-and-play capability which is compatible with the widest range of off-the-shelf charts like C-MAP and Navionics. Backed by a 2-year warranty, the Lowrance HDS-9 Carbon ROW lets you enjoy fishing to the max!

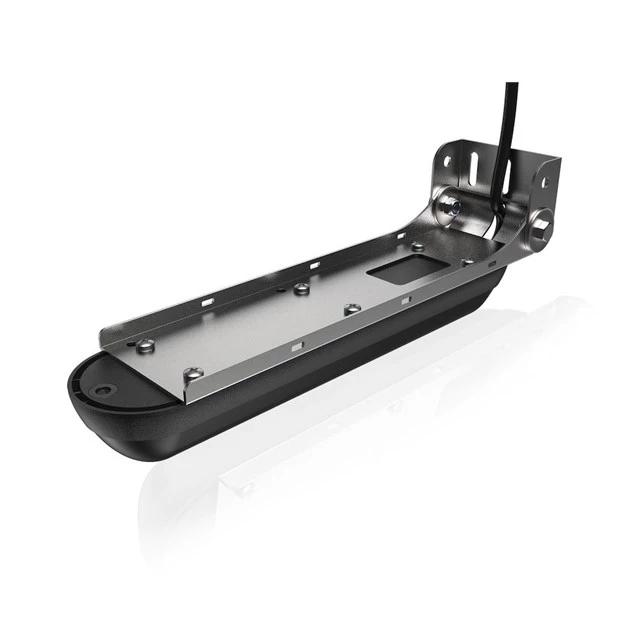

Active Imaging 3-in-1 Transducer

Perfect for pinpointing fish-holding areas like rockpiles, standing timber, weedbeds, ditches and drop-offs, Active Imaging 3-in-1 sonar delivers superior clarity and the highest resolution images of fish and structure at a longer range than any other structure imaging technology.

Lowrance HDS-9 Carbon ROW GPS/Fishfinder Features:

• High-resolution 9-inch SolarMAX HD display
• FishReveal smart target view
• Built-in support for StructureScan 3D
• Enhanced SideScan and DownScan imaging capability
• Built-in Lowrance CHIRP
• Wireless connectivity
• NMEA 2000 and Ethernet connectivity
• SmartSteer control of outboard pilot and MotorGuide Xi5 trolling motor
• Power-pole shallow water anchor compatible
• Point-1 antenna ready
• Sonic-Hub 2 compatible
• Broadband radar ready
• Mercury vesselview link compatible

Lowrance HDS-9 Carbon ROW GPS/Fishfinder Specifications:

• Power consumption min: 1.75A at 13VDC with full backlight, sonar on
• Power consumption typical: 1.75A at 13VDC with full backlight, sonar on
• Update rate: 10 Hz
• GPS: 10 Hz GPS/GLONASS WAAS/EGNOS/MSAS
• Shock Vibration: 100,000 cycles of 20 G
• Display resolution: 1280 x 720
• Supply voltage: 12 VDC (10.8-17VDC)
• Compass safe: 12in (300mm)
• Screen brightness: >1300 Nits
• GPS receiver channels: 16
• Ethernet ports: 2 x 100 Mbit, 6 max MFD’s on a network
• NMEA 2000 connectivity: 1 x Micro-C
• SD card storage: 2 micro SD cards up to 32GB
• Warranty period: 2 year + part of the 5 year upgrade program
• Power consumption max: 2.3A at 13VDC with full backlight, sonar on
• Position accuracy: 20m RMS
• Weight: 4.14lb (2.00Kg)
• Waypoints, routes, tracks: 3000 waypoints, 100 routes and 100 trails with up to 10,000 points per trail
• Time to first fix: 30s
• Storage temperature range: -40 degrees F to 185 degrees F (-40 degrees C to 85 degrees C)
• Radar compatibility: 4G (Broadband), 3G (Broadband), TX06L-1 (6kW HD digital)
• Dimensions: 6.65in (168.92mm) x 10.43in (264.95mm) x 3.47in (88.2mm)
• Operating temperature range: 5 degrees F to 131 degrees F (-15 degrees C to 55 degrees C)
• Recommended fuse rating: 5A
• Humidity: 60 degrees C, 95% relative humidity (RH) for 18 hours
• Internal storage: 8.0GB internal
• Viewing angles: 85 degrees top/bottom, 85 degrees left/right
• AIS: AIS chart and radar overlay. Target vessel details
• Cartography included: C-MAP World Background (ROW models) Navionics Basemap (AMER and ROW models)
• Steering modes: Course, heading, waypoint, power steer
• Manoeuvres: Course, heading, waypoint, power steer, U-turn, C-turn, spiral, zigzag, square, lazy-S
• Digital switching: Czone
• Correction: DGPS, WAAS
• Approvals compliance: FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM
• Interface: Full multi-touch touchscreen and keypad; 8-way directional keypad; ZOOM +/-, EXIT, ENTER,MENU, SWAP PANEL, WPT, LIGHT/POWER
• Mounting type: Gimbal bracket or dash flush mount
• Charts supported: Insight, Navionics (Gold, NAV+ Platinum+), C-MAP (MAX N, MAX N+)
• Bluetooth: Integrated
• Sonar compatibility: Integrated: CHIRP, Broadband, DownScan & StructureScan.Compatible with: SonarHub, StructureScan, StructureScan3D
• Item connectivity WiFi: Internal 802.11b/g/n and compatible with WiFi-1 module
• Waterproof rating: IPX7 with card door closed
• PC connectivity: None
• Autopilot: Outboard pilot and MotorGuide Xi5 trolling motor *requires Motorguide pinpoint gateway
• Video: Output: NoInput: Composite video RCA – singlechannel via optional adaptor
• Backlight colour: Pure white LED
• Weather: SiriusXM via WM-3 (USA only)
• Multimedia: SonicHub, SonicHub2, FusionLink products

What’s in the box?

• HDS-9 Carbon ROW
• HDS-9 suncover
• Power cable for HDS series
• Gimbal bracket and knobs
• HDS connector caps
• Active Imaging 3-in-1 Transducer

Note: Chart card sold separately.
