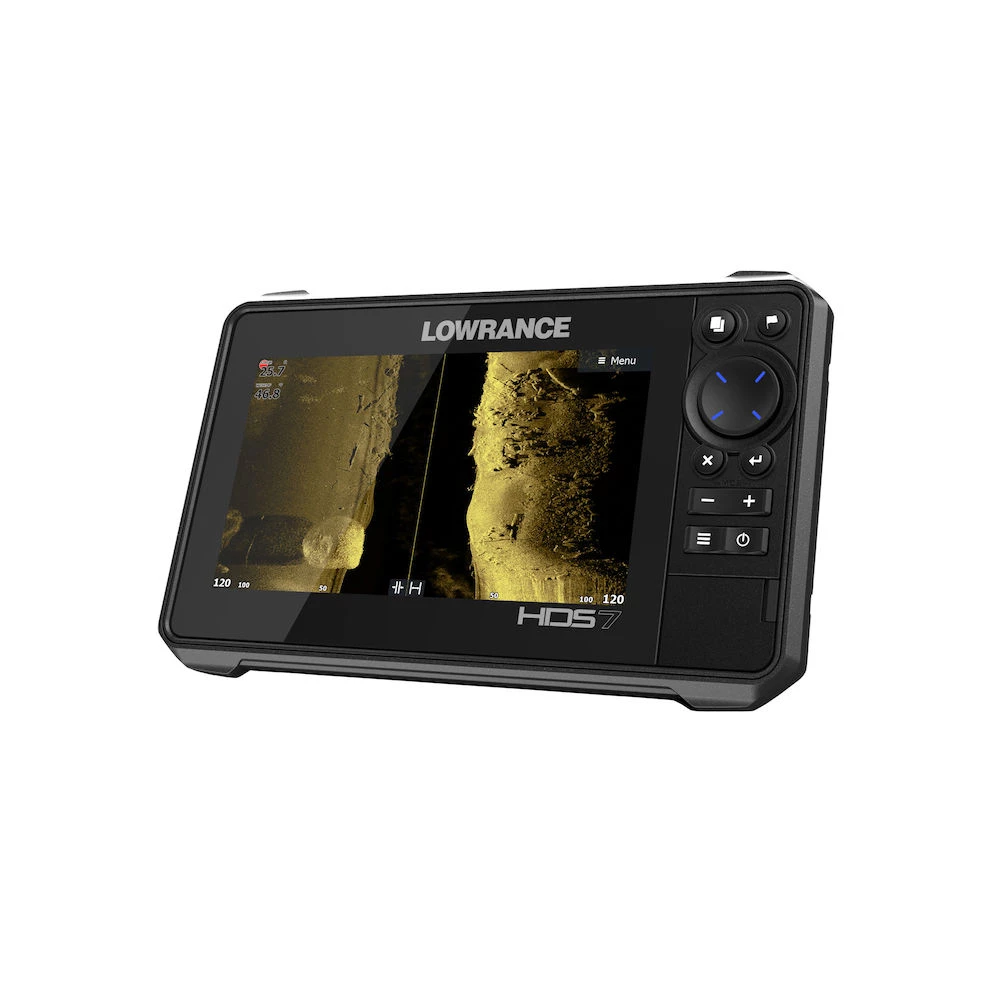

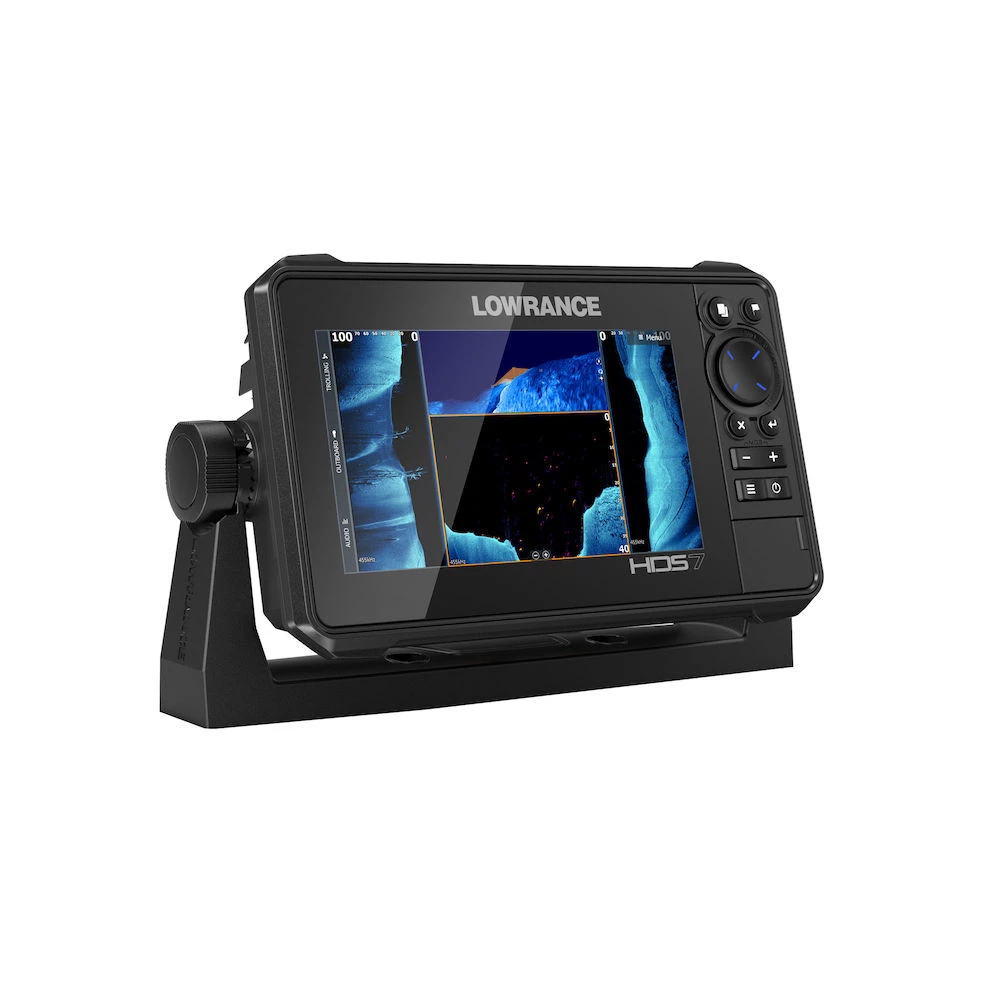

Lowrance HDS-7 LIVE GPS Chartplotter/Fishfinder NZ/AU

A new level of fishfinding performance

Big enough for use as a standalone display, but compact enough to fit consoles with limited space, the Lowrance HDS-7 LIVE GPS Chartplotter/Fishfinder offers access to the latest Lowrance fishfinding innovations with support for Active Imaging, LiveSight real-time sonar, StructureScan 3D with Active Imaging and Genesis Live onscreen mapping.

Active Imaging
Perfect for pinpointing fish-holding areas like rockpiles, standing timber, weedbeds, ditches and drop-offs, Active Imaging sonar delivers superior clarity and the highest resolution images of fish and structure at a longer range than any other structure-imaging technology.

Note: This listing is for the Lowrance HDS-7 LIVE GPS Chartplotter/Fishfinder only. Transducer sold separately.

Lowrance HDS-7 LIVE GPS Chartplotter/Fishfinder Features:

• Active Imaging 3-in-1 (CHIRP/Side/Down) sonar ready
• Active Imaging 2-in-1 (Side/Down) sonar ready
• StructureScan 3D compatible
• LiveSight real-time sonar compatible
• Smartphone notifications
• High-performance dual-core processor
• C-MAP Genesis Live onscreen mapping
• FishReveal Smart Target View
• Full high-definition SolarMAX HD screen (HDS LIVE 16 only)
• High-resolution SolarMAX HD multi-touch screen
• Preloaded Australia/New Zealand basemap
• C-MAP Easy Routing, Navionics Autorouting capability
• Dual-Channel CHIRP – dual sonar-range coverage from the same transducer
• Live Network Sonar
• 1kW sonar output power
• SiriusXM Marine Weather and Audio compatible
• Wireless and Bluetooth connectivity
• Heat Map Chart Overlay
• Enhanced Surface Clarity
• Quick Access Control Bar
• Touchscreen control of MotorGuide Xi5 Trolling Motor , Outboard Pilot and Power Pole anchors
• Radar and SonicHub2 audio server connectivity
• NMEA 2000 engine support
• Optional mapping upgrades include C-MAP, Navionics and more

Lowrance HDS-7 LIVE GPS Chartplotter/Fishfinder Specifications:

• Screen Brightness:>1200 Nits
• Power Consumption:min1.7A @ 13VDC with Full Backlight, Sonar on
• Power Consumption:typical1.7A @ 13VDC withwith Full Backlight, Sonar on
• Update rate:10 Hz
• GPS:10 Hz GPS/GLONASS WAAS/EGNOS/MSAS
• Shock Vibration:100,000 cycles of 20 G
• Display Resolution:1024 x 600
• Supply Voltage:12 v DC (10.8-17VDC)
• Compass Safe:12″ (300mm)
• GPS Receiver Channels:16
• Ethernet Ports:1x 100 Mbit, 6 max MFD’s on a network
• NMEA 2000 Connectivity:1x Micro-C
• SD Card Storage:2 micro SD cards up to 32GB
• Warranty Period:2 Year + 3 additional years of upgrade optionsTotaling 5 years
• Power Consumption max:2.4A @ 13VDC with Full Backlight, Sonar on
• Position Accuracy:20m RMS
• Weight:3.04lb (1.38kg)
• Waypoints, Routes, Tracks: 3000 Waypoints100 Routes100 Trails with up to 10,000 points per trail
• Time to First Fix:30s
• Storage Temperature Range: 4°F to 140°F (-20°C to 60°C )
• Radar compatibility: 4G (Broadband)3G (Broadband)Halo24 (Pulse Compression Dome Radar)Halo 3’/4’/6′ (Open Array Pulse Compression Radar)
• Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
• Recommended Fuse Rating: 5A
• Humidity: 60°C, 95% relative humidity (RH) for 18 hours
• Internal Storage: 8.0 GB Internal
• Viewing Angles: 80° top/bottom, 80° left/right
• Dimensions W x H x D: 9.21in (234.01mm) x 5.73in (145.6mm) x 3.06in (77.7mm)
• AIS: AIS Chart and Radar overlay. Target vessel details.
• Charts supported: C-MAP (MAX N, MAX N+)C-MAP GenesisC-MAP Precision Contour HD (AMER ONLY)Navionics (Gold, NAV+ Platinum+)Insight (Pro and HD)Lowrance Regional Mapping Partners
• Cartography included: C-MAP AUS/NZ Enhanced Basemap (AUS/NZ models)
• Steering Modes: CourseHeadingWaypointPower Steer
• Manoeuvres Turn Patterns: CourseHeadingWaypointPower SteerU-TurnC-TurnSpiralZigzagSquareLazy-S
• Digital Switching: CzoneNaviop
• Correction: DGPS, WAAS
• Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic
• Sonar Compatibility: Integrated: CHIRPBroadbandActive Imaging DownScanActive Imaging SideScanCompatible with: SonarHubStructureScanStructureScan3D
• Item Connectivity WiFi: Internal 802.11b/g/n and Compatible with WiFi-1 Module
• Waterproofrating: IPX7 with card door closed
