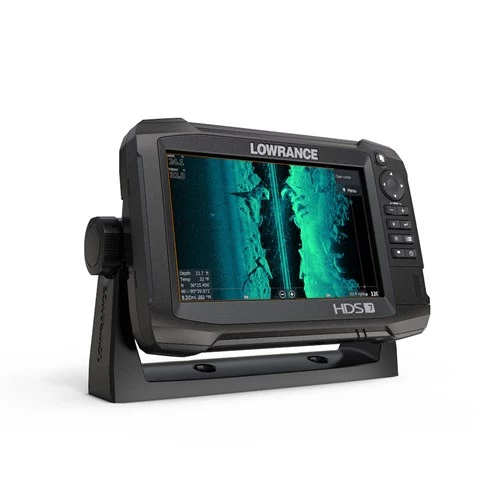

Lowrance HDS-7 Carbon ROW With Med/High/StructureScan 3D Bundle

Reveal the ocean’s wonders

The Lowrance HDS-7 Carbon ROW brings you powerful performance and top tier functionality while saving valuable space. This series carries all the functions and features you have come to love with Lowrance, including the clearest SolarMAX HD screens, the fastest chart redraws and sonar updates, plus built-in Lowrance CHIRP sonar and StructureScan 3D capability.

FishReveal Smart Target View and StructureScan 3D

It features FishReveal smart target view to make fish easier to see. Combining traditional CHIRP sonar fish arches with superior, high-resolution imaging, you get fast and precise views of the ocean depths. It provides details you need like bottom structure and bait fish. This feature also eliminates the need to display CHIRP and DownScan imaging in a two-panel split-screen display. By adding the StructureScan 3D transducer and module, you can unlock the full potential of the StructureScan 3D functionality which lets you easily pinpoint fish locations and key fishing areas in and around structure where the fish like to hide. The 3D view combines enhanced SideScan and DownScan imaging to give you precise details in a crisp display. You can also place waypoints on favourite fishing spots and revisit them again and again with the HDS-7’s powerful navigating capabilities.

Dual-Channel CHIRP

The Dual-channel CHIRP feature lets you view two Lowrance CHIRP frequencies at the same time on a dual-channel CHIRP split screen. By adding panels dedicated for high, medium or low CHIRP frequencies, you get the most of this functionality and can cover all areas of the ocean. To support all these features, the HDS-7 runs in Lowrance’s fastest dual-core processor, so you experience faster map panning, more responsive commands, quicker redraw and more frequent sonar updates.

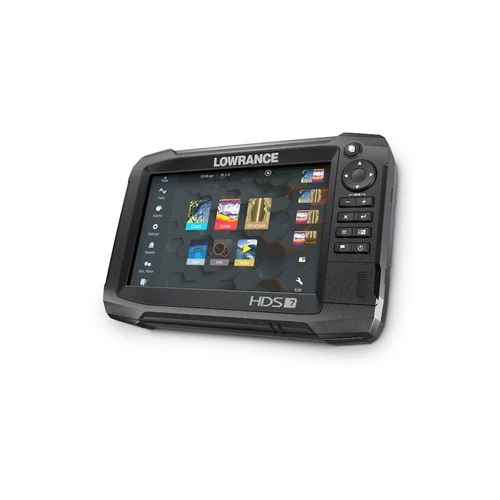

SolarMAX HD Display

All details are displayed in SolarMAX HD, giving you super bright, high-resolution imaging. This display is designed for any weather condition. With bright and clear images, you can view the screen from any angle even under direct sunlight. The ultra-responsive multi-touch screen display works even when the display is wet. What’s more, the display can be viewed and controlled from your smartphone or tablet using the free link app, making everything much more convenient! You can also easily build a system around the HDS-9 with its plug and play capability and is compatible with the widest range of off-the-shelf charts like C-MAP and Navionics. Backed by a 2-year warranty, the Lowrance HDS-7 Carbon ROW lets you enjoy fishing to the max!

Lowrance HDS-7 Carbon ROW Features:

• High-resolution 7-inch SolarMAX HD display
• FishReveal smart target view
• Built-in support for StructureScan 3D
• Enhanced SideScan and DownScan imaging capability
• StructureScan HD and TotalScan all-in-one transducer ready
• Built-in Lowrance CHIRP
• Wireless connectivity
• NMEA 2000 and Ethernet connectivity
• SmartSteer control of outboard pilot and MotorGuide Xi5 trolling motor
• Power-pole shallow water anchor compatible
• Point-1 antenna ready
• Sonic-Hub 2 compatible
• Broadband radar ready
• Mercury vesselview link compatible

Lowrance HDS-7 Carbon ROW Specifications:

• Power consumption min: 1.5A at 13VDC with full backlight, sonar on
• Power consumption typical: 1.5A at 13VDC with full backlight, sonar on
• Update rate: 10 Hz
• GPS: 10 Hz GPS/GLONASS WAAS/EGNOS/MSAS
• Shock Vibration: 100,000 cycles of 20 G
• Display resolution: 1024 x 600
• Supply voltage: 12 VDC (10.8-17VDC)
• Compass safe: 12in (300mm)
• Screen brightness: 1500 Nits
• GPS receiver channels: 16
• Ethernet ports: 1 x 100 Mbit, 6 max MFD’s on a network
• NMEA 2000 connectivity: 1 x Micro-C
• SD card storage: 2 micro SD cards up to 32GB
• Warranty period: 2 year + part of the 5 year upgrade program
• Power consumption max: 2.3A at 13VDC with full backlight, sonar on
• Position accuracy: 20m RMS
• Weight: 3.04lb (1.38Kg)
• Waypoints, routes, tracks: 3000 waypoints, 100 routes and 100 trails with up to 10,000 points per trail
• Time to first fix: 30s
• Storage temperature range: -40 degrees F to 185 degrees F (-40 degrees C to 85 degrees C)
• Radar compatibility: 4G (Broadband), 3G (Broadband), TX06L-1 (6kW HD digital)
• Dimensions: 5.76in (146.3mm) x 8.48in (215.4mm) x 3.47in (88.2mm)
• Operating temperature range: 5 degrees F to 131 degrees F (-15 degrees C to 55 degrees C)
• Recommended fuse rating: 5A
• Humidity: 60 degrees C, 95% relative humidity (RH) for 18 hours
• Internal storage: 8.0GB internal
• Viewing angles: 85 degrees top/bottom, 85 degrees left/right
• AIS: AIS chart and radar overlay. Target vessel details
• Cartography included: C-MAP World Background (ROW models) Navionics Basemap (AMER and ROW models)
• Steering modes: Course, heading, waypoint, power steer
• Manoeuvres: Course, heading, waypoint, power steer, U-turn, C-turn, spiral, zigzag, square, lazy-S
• Digital switching: Czone
• Correction: DGPS, WAAS
• Interface: Full multi-touch touchscreen and keypad; 8-way directional keypad; ZOOM +/-, EXIT, ENTER,MENU, SWAP PANEL, WPT, LIGHT/POWER
• Mounting type: Gimbal bracket or dash flush mount
• Charts supported: Insight, Navionics (Gold, NAV+ Platinum+), C-MAP (MAX N, MAX N+)
• Bluetooth: Integrated
• Sonar compatibility: Integrated: CHIRP, Broadband, DownScan & StructureScan.Compatible with: SonarHub, StructureScan, StructureScan3D
• Item connectivity WiFi: Internal 802.11b/g/n and compatible with WiFi-1 module
• Waterproof rating: IPX7 with card door closed
• PC connectivity: None
• Autopilot: Outboard pilot and MotorGuide Xi5 trolling motor *requires Motorguide pinpoint gateway
• Video: Output: NoInput: Composite video RCA – singlechannel via optional adaptor
• Backlight colour: Pure white LED
• Weather: SiriusXM via WM-3 (USA only)
• Multimedia: SonicHub, SonicHub2, FusionLink products

What’s in the box?

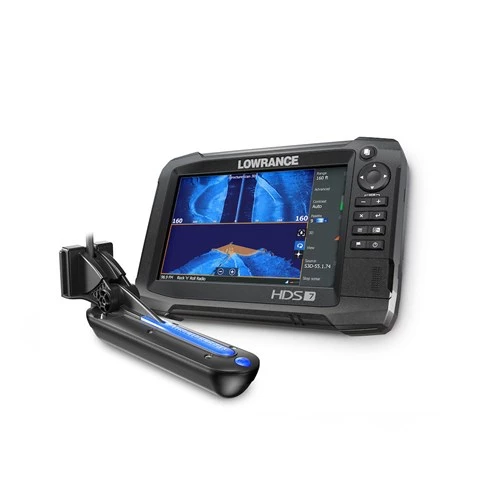

• HDS-7 Carbon (no transducer)
• StructureScan 3D transducer and module
• PC-30-RS422 power cable
• HDS connector caps
• FUSE-1 set of 3 x 3-amp fuses
• 83/200 kHz transom mount skimmer with temp
• HDS-7 gen3/gen2 touch/HOOK/Elite 7″ gimbal bracket and knobs
• HDS-7 gen3 suncover
• HDS Carbon 7 bezel & SD-card door

Lowrance HDS-7 Carbon ROW with Med/High/StructureScan 3D Bundle Installation Manual
