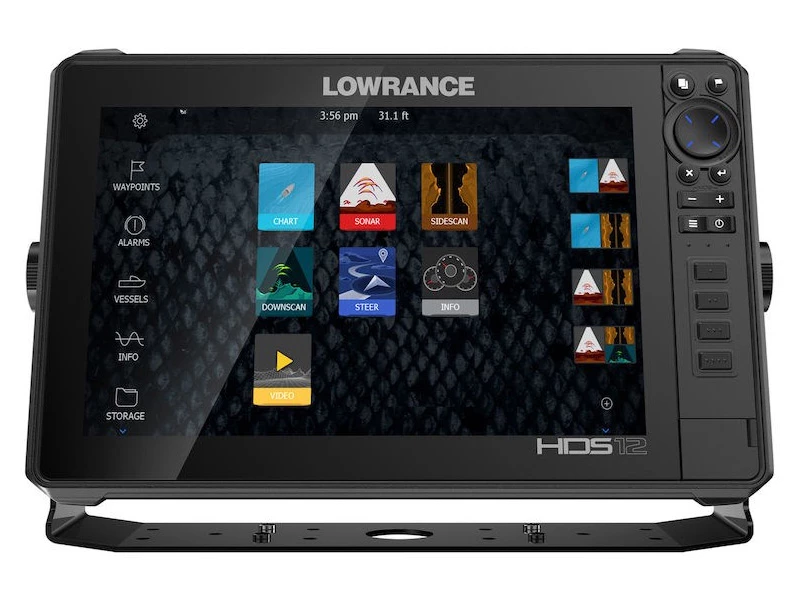

Lowrance HDS-12 LIVE GPS/Fishfinder NZ/AU With Active Imaging 3-in-1 Transducer

You’ve never fished like this before

With the new Lowrance HDS-12 LIVE GPS/Fishfinder,
Lowrance took the most popular fishfinder series on the
professional fishing circuit and made it even better for all
anglers with a sleek, new design, faster processor, best-ever
built-in suite of HDS navigation tools and support for a wide array
of new fishfinding technology, unmatched by any other
fishfinder.

Prepare yourself for a new level of fishfinding performance with
HDS LIVE, which includes built-in Lowrance CHIRP sonar, support for
Active Imaging, StructureScan 3D with Active Imaging and
revolutionary LiveSight Real-Time Sonar. Equipped with the best set
of navigation tools ever built into a fishfinder/chartplotter
display, HDS LIVE features preloaded C-MAP Enhanced Inland and
Coastal mapping, automatic routing support and new Genesis Live
onscreen mapping offering precision real-time mapping, down to

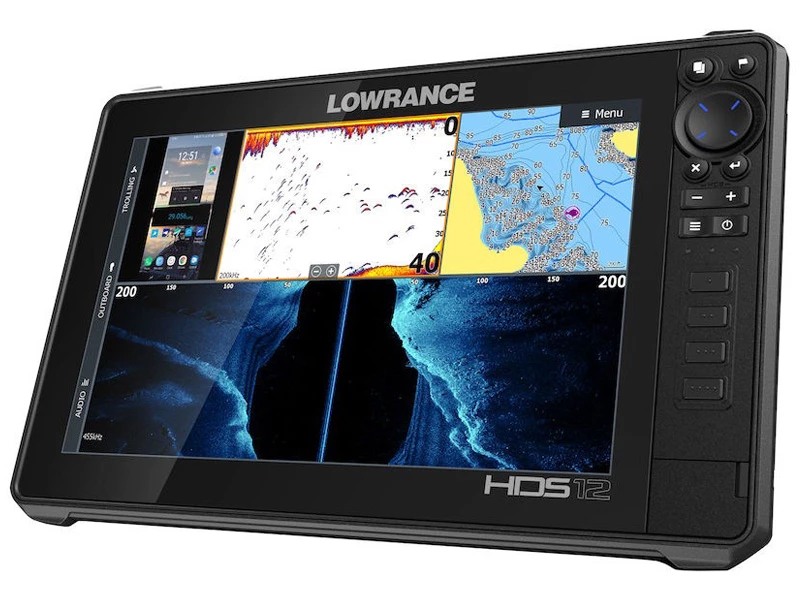

½-foot contours. The HDS-12 LIVE provides the capability to view
data in a six-panel splitscreen.

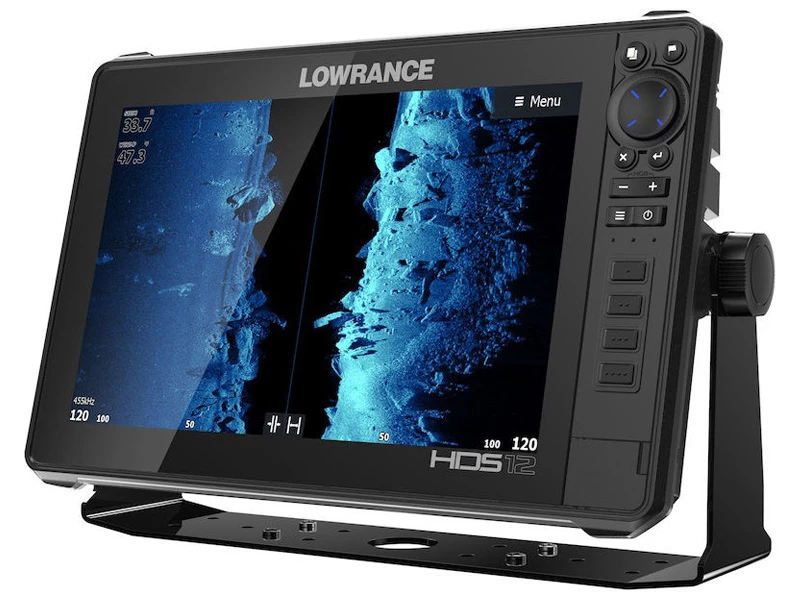

Active Imaging
Perfect for pinpointing fish-holding areas like rockpiles, standing
timber, weedbeds, ditches and drop-offs, Active Imaging sonar
delivers superior clarity and the highest resolution images of fish
and structure at a longer range than any other structure-imaging
technology.

FishReveal
Makes fish easier to see on DownScan Imaging by combining CHIRP
sonar fish targets with superior, high-resolution views of bottom
detail, structure and bait fish. FishReveal removes the need to
display CHIRP sonar and DownScan Imaging in a two-panel
split-screen.

Mapping in Real-Time
Update the mapping of your favourite fishing spot or map unmapped
areas with ½ foot contours – in real time – on the screen of your
fishfinder/chartplotter with C-MAP Genesis Live. Genesis Live uses
digital depth to create high-definition maps featuring 1/2-foot
contours. Target key fishing areas with Genesis Live maps, which
makes it easy to find areas where fish like to hide, like
drop-offs, points, ditches and more. A truly customisable mapping
experience, Genesis Live gives you control over contour
transparency, contour density, depth and safety shading colour
palettes and more. Create your Genesis Live maps in real-time,
saving them as you go to a microSD card.

Smartphone Notifications
Keep your eyes on the fish and never miss an important text or call
with smartphone notifications built into HDS LIVE. Turn off phone
notifications for uninterrupted fishing, or leave them on to
receive popup notifications on the screen of your HDS LIVE
display.

Active Imaging 3-in-1 Transducer
Active Imaging 3-in-1 Transducer: Active Imaging 3-in-1 combines
the new Active Imaging scanning sonar with a traditional
Medium/High CHIRP sonar element for easy single transducer
installation.7.6 m (25 ft) cable with 9 pin connector.

Lowrance HDS-12 LIVE GPS/Fishfinder Features:

• Active Imaging 3-in-1 (CHIRP/Side/Down) sonar ready
• Active Imaging 2-in-1 (Side/Down) sonar ready
• StructureScan 3D with Active Imaging enhancements – Coming Fall
  2018
• LiveSight real-time sonar compatible – Coming Spring
  2019
• Smartphone notifications
• Powerful quad-core processor
• High-performance dual-core processor
• Programmable keys
• C-MAP Genesis Live onscreen mapping
• FishReveal Smart Target View
• Six-panel, splitscreen capability
• High-resolution SolarMAX HD multi-touch screen
• Preloaded high-detail C-MAP US Enhanced charts with 1-foot
  contours on 4,000 lakes
• C-MAP Easy Routing, Navionics Autorouting capability
• Dual-Channel CHIRP – dual sonar-range coverage from the same
  transducer
• Live Network Sonar
• SiriusXM Marine Weather and Audio compatible
• Wireless and Bluetooth connectivity
• Heat Map Chart Overlay
• Enhanced Surface Clarity
• Quick Access Control Bar
• Touchscreen control of MotorGuide Xi5 Trolling Motor , Outboard
  Pilot and Power Pole anchors
• Radar and SonicHub2 audio server connectivity
• NMEA 2000 engine support
• Optional mapping upgrades include C-MAP, Navionics and
  more

Lowrance HDS-12 LIVE GPS/Fishfinder
Specifications:

• Screen Brightness: >1200 Nits
• Update rate: 10 Hz
• GPS: 10 Hz GPS/GLONASS WAAS/EGNOS/MSAS
• Shock Vibration: 100,000 cycles of 20 G
• Supply Voltage: 12 v DC (10.8-17VDC)
• Compass Safe: 12″ (300mm)
• Display Resolution: 1280 x 800
• GPS Receiver Channels: 16
• NMEA 2000 Connectivity: 1x Micro-C
• SD Card Storage: 2 micro SD cards up to 32GB
• Ethernet Ports: 2 x 100 Mbit, 6 max MFD’s on a network
• Warranty Period: 2 Year + 3 additional years of upgrade options
  totalling 5 years
• Power Consumption typical: 2.3A @ 13VDC with Full Backlight,
  Sonar on
• Power Consumption min: 2.3A @ 13VDC with Full Backlight, Sonar
  on
• Position Accuracy: 20m RMS
• Power Consumption max: 3.6A @ 13VDC with Full Backlight, Sonar
  on
• Waypoints, Routes, Tracks: 3000 Waypoints, 100 Routes, 100
  Trails with up to 10,000 points per trail
• Time to First Fix: 30s
• Storage Temperature Range: 4°F to 140°F (-20°C to 60°C
  )
• Radar compatibility: 4G (Broadband), 3G (Broadband), Halo24
  (Pulse Compression Dome Radar), Halo 3’/4’/6′ (Open Array Pulse
  Compression Radar)
• Operating Temperature Range: 5°F to 131°F (-15°C to 55°C
  )
• Recommended Fuse Rating: 5A
• Weight: 6.5lb (2.95kg)
• Humidity: 60°C, 95% relative humidity (RH) for 18
  hours
• Internal Storage: 8.0 GB Internal
• Viewing Angles: 80° top/bottom, 80° left/right
• Dimensions H x W x D: 9.00in (228.5mm) x 13.682in (347.5mm) x
  3.26in (82.9mm)
• AIS: AIS Chart and Radar overlay. Target vessel
  details.
• Charts supported: C-MAP (MAX N, MAX N+), C-MAP Genesis, C-MAP
  Precision Contour HD (AMER ONLY), Navionics (Gold, NAV+ Platinum+),
  Insight (Pro and HD), Lowrance Regional Mapping Partners
• Catography included: C-MAP US Enhanced Basemap (AMER models),
  C-MAP World Background (ROW models), Navionics basemap (AMER and
  ROW models)
• Steering Modes: Course, Heading, Waypoint, Power Steer
• Manouevres Turn Patterns: Course, Heading, Waypoint, Power
  Steer, U-Turn, C-Turn, Spiral, Zigzag, Square, Lazy-S
• Digital Switching: Czone, Naviop
• Correction: DGPS, WAAS
• Approvals Compliance: FCC, Industry Canada, Radio Equipment
  Directive, ACMA, RSM
• Mounting Type: Gimbal Bracket, Front Dash, Flush Mount, Rear
  Dash, Flush Mount
• Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth
  Classic
• Sonar Compatibility: Integrated: CHIRP Broadband Active
  Imaging, DownScan Active Imaging, SideScan. Compatible with:
  SonarHub, StructureScan, StructureScan3D
• Item Connectivity WiFi: Internal 802.11b/g/n and Compatible
  with WiFi-1 Module
• Waterproofrating: IPX7 with card door closed
• PC Connectivity: None
• Autopilot: Outboard Pilot, MotorGuide Xi5/Xi3 Trolling Motor
  **requires Motorguide PinPoint Gateway
• Video: Output:No, Input:HDMI Composite video RCA – single
  channel via optional adaptor
• Backlight Colour: Pure White LED
• Multimedia: SonicHub, SonicHub2FusionLink products, any NMEA
  2000 compliant Marine Audio products
• Interface: Touchscreen: Full Multi-touch touchscreen, Keypad:
  8-way directional keypad, Zoom +/-,
  ExitEnterMenuWaypointPower/Light4 – User Programmable Quick Access
  Keys

What’s in the box:

• HDS-12 LIVE Unit
• Active Imaging 3-in-1 Transducer
• PC-30-RS422 Power Cable for HDS Series
• HDS-12 LIVE Bracket
• HDS-12 LIVE Sun Cover
• HDS-12 Bezel and SD Door
