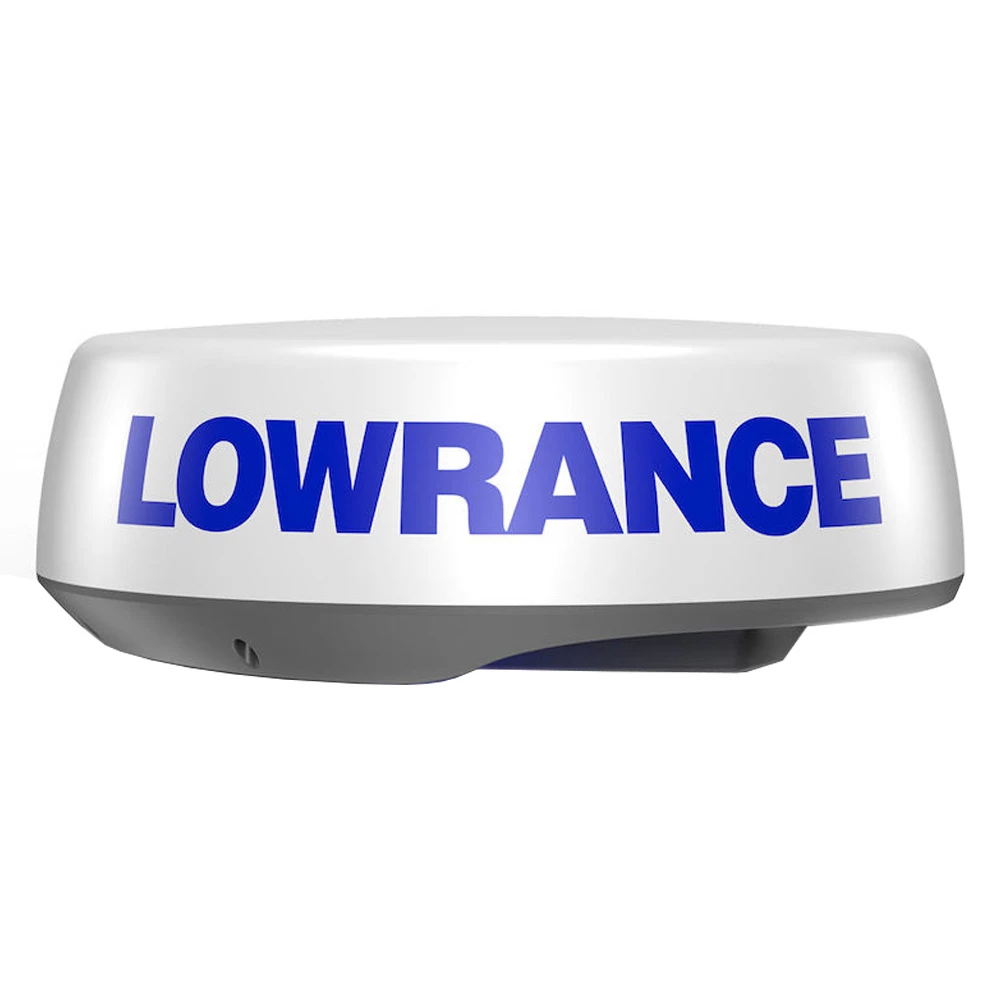

Lowrance HALO24 24” Radar

High-speed radar coverage exactly when and where you need
it

Lowrance’s most revolutionary radar to date, the Lowrance
HALO24 24″ Radar offers a second by second view around
your boat. Velocity Track Doppler technology provides instantaneous
hazard identification at short range while long range coverage – up
to 48 nautical miles – lets you keep an eye on the weather up
ahead.

See near and far with one compact dome
Perfect for a wide range of coastal bay boats, HALO24 comes in a
compact dome antenna and delivers high-quality short, mid and
long-range detection. Monitor two distance ranges at once in Dual
Range mode which enables you to keep an eye on far away weather
cells while watching for collision hazards up close. HALO24 radar’s
pulse compression technology means no compromises in detection at
either selected range, while beam sharpening provides enhanced
separation between small or distant targets.

The ultimate view for collission avoidance
HALO24 radar delivers a full 360 degree sweep every second, thanks
to its industry-first 60 RPM rotation at ranges up to 1.5 nautical
miles. These ultra-fast updates give you an almost real-time view
at close range, offering the ultimate view for collision
avoidance.

VelocityTrack Doppler technology built-in
VelocityTrack technology provides instant visual feedback on
whether targets are coming towards you or moving away. Simple
colour coding highlights potential hazards, improving your
situational awareness and further reducing your risk of collision.
HALO24 radar automatically checks every target in range; there’s no
need to manually select individual targets, and no limit to the
number of targets on screen at one time.

Ready when you are
HALO24 radar wakes instantly from its low-power standby mode,
delivering this high-speed radar coverage exactly when and where
you need it. Even if your HALO24 radar is completely powered down
start-up is a matter of seconds, not minutes like traditional pulse
radar. Whether you’re navigating through crowded waterways or
contending with poor visibility, HALO24 radar immediately cuts
through the clutter to give you a clear and current picture of your
surroundings.

Lowrance HALO24 24″ Radar Features:

• 48 nm range from a compact 24-inch dome
• Advanced pulse compression technology with beam
  sharpening
• Simultaneous Dual Range operation sees both near and
  far
• Ultra-fast 60 RPM operation at ranges up to 1.5 nm
• VelocityTrack Doppler technology for collision
  avoidance
• Easy operation with harbour, offshore, weather and bird
  modes
• MARPA target tracking (up to 10 targets, 20 in dual
  range)
• Ready instantly from standby

Lowrance HALO24 24″ Radar Specifications:

• Ethernet Ports: 100 Base T
• Max Wind Speed: 100 knots (51 m/s)
• Min Range, scale: 100 m (328 ft)
• Warranty Period: 2 Years
• Power Consumption typical: 20W
• Operating Temperature Range: -25° to + 55°C (-13° to
  +130°F)
• Power Consumption max: 27W
• Beam width: 3.9° nominal (-3dB) 2° with target separation on
  high
• Max Range, scale: 48 NM
• Recommended Fuse Rating: 5A
• Weight: 6.75 kg (14.9 lbs) without cable
• Dimensions Diameter: 610mm (24″)
• Dimensions W x H x D: 610mm dia x 225 mm H. (24″ dia x 8.9″
  H)
• Supply Voltage: 9 – 31.2 VDC (12/24V systems)
• Humidity: 95% RH at 35°C (95°F)
• Approvals Compliance: FCC, Part 47 CFR 80 and 90: RED, Article
  3 of Directive 99/5/EC: CE: EN, EN302-248 V2.1.1: Industry Canada,
  RSS238: RCM (C-Tick): IEC60945 Sec 9.2,9.3, 10.3-10.9, 11.2:
  IEC60950 Electrical Safety
• Radar Modes: Harbour, Offshore, Weather, Bird Dual Range, North
  Up Course Up, Relative motion, True Motion
• Waterproof rating: IPX6
• Interface: Lowrance MFD
• Radar Technology: Pulse Compression
• Rotation speed: Up to 60 RPM (Range Dependent)

What’s in the Box:

• 24″ Radar Unit
• 5m cable for HALO Dome Radar
• Cable, RJ45 To 5 Pin,1.5m
• RJ45 Waterproofing Boot
