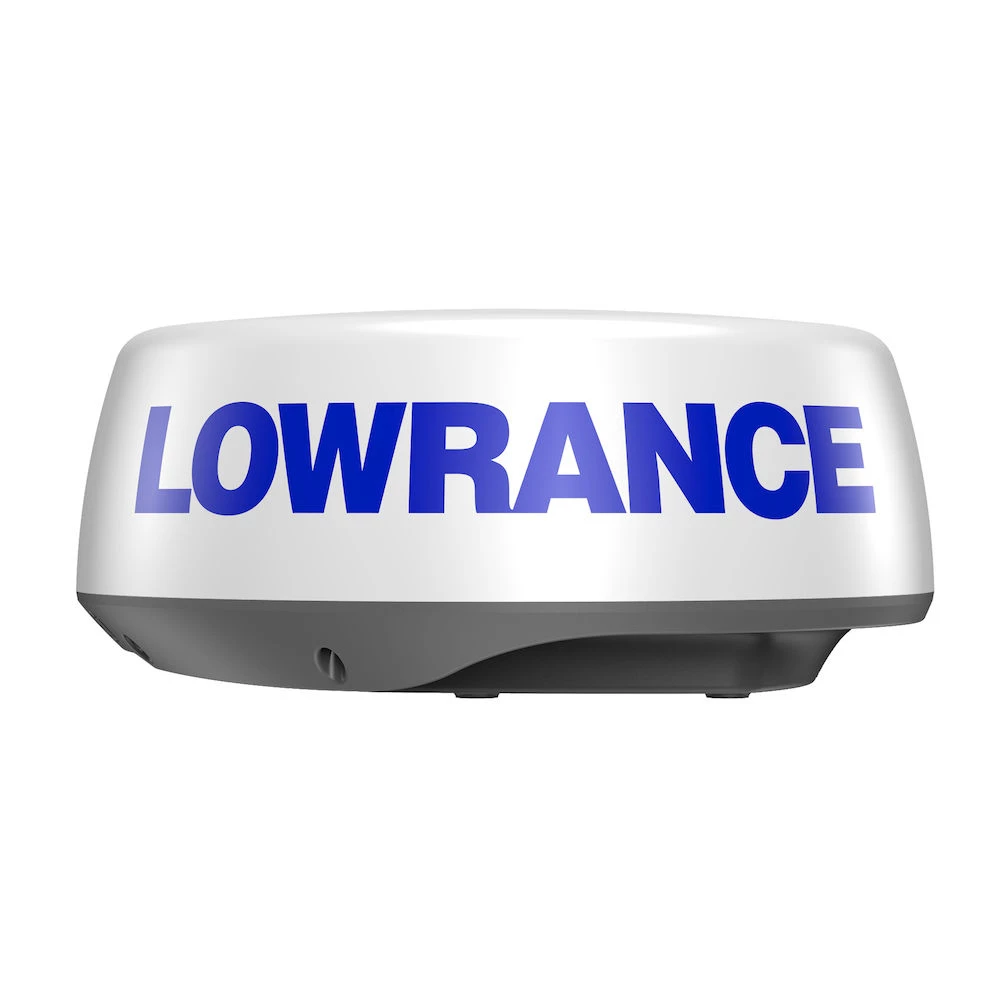

Lowrance HALO20 20” Radar

Enhance your situational awareness and on-water safety

Improve your situational awareness and collision avoidance with the
new Lowrance HALO20 20″ Radar, a compact dome
radar with pulse compression technology that detects collision
hazards and other targets in close and up to 24 nautical miles
away. With its small footprint and low profile, HALO20 is great for
boaters with small sportfishing vessels and dayboats.

Quality short-to-mid-range performance
Extend your view from the bow of your boat up to 24 nautical miles
with pulse-compression radar technology that delivers a powerful
mix of short and long-range detection, as well as precise target
definition with minimal clutter.

Better situational awareness, collision avoidance
HALO20 radar delivers a comprehensive range of features to enhance
your situational awareness and on-water safety. Monitor selected
collision hazards with MARPA target tracking, tracking up to 10
targets, or 20 in dual range. Whether you’re navigating crowded
waterways or dealing with poor visibility, HALO20 Radar immediately
analyses your surroundings to give you a clear and current
picture.

Ready when you are
HALO20 Radar wakes instantly from its low-power standby mode,
delivering high-speed radar coverage exactly when and where you
need it. Even if your HALO20 Radar is switched off, start-up is a
matter of seconds, not minutes like traditional pulse radar.

Easy to use
Harbour, Offshore, Weather and custom modes tune HALO20 Radar’s
advanced signal processing to ensure that targets can be seen
clearly – even in the toughest environmental conditions.

Lowrance HALO20 20″ Radar Features:

• 10W Pulse Compression
• 24 nm range from a compact 20-inch dome
• Unrivalled short range
• Radiation safe
• Easy operation with harbour, offshore and weather mode
• MARPA target tracking
• InstantOn
• Low Power Consumption
• Guard Zones

Lowrance HALO20 20″ Radar Specifications:

• Supply Voltage: 10.5 – 31.2 VDC (12/24V systems)
• Max Wind Speed: 100 knots (51 m/s)
• Power Consumption typical: 18W
• Warranty Period: 2 Years
• Power Consumption max: 20W
• Max Range, scale: 24 NM
• Rotation speed: 24 RPM
• Operating Temperature Range: -25° to + 55°C (-13° to
  +130°F)
• Beam width: 4.9° H x 25° V
• Weight: 5.9 kg (13 lbs) without cable
• Min Range, scale: 50 m / 200 ft / 50 yd
• Dimensions Diameter: 510mm (20″)
• Dimensions (W x H x D): 510mm dia x 223 mm H. (20″ dia x 8.8″
  H)
• Recommended Fuse Rating: 5A
• Humidity: 95% RH at 35°C (95°F)
• Approvals Compliance: FCC, Part 47 CFR 80 and 90: RED, Article
  3 of Directive 99/5/EC: CE: EN, EN302-248 V2.1.1: Industry Canada,
  RSS238: RCM (C-Tick): IEC60945 Sec 9.2,9.3, 10.3-10.9, 11.2:
  IEC60950 Electrical Safety
• Radar Modes: Harbour, Offshore, Weather, North Up, Course Up,
  Relative motion, True Motion
• Waterproof rating: IPX6
• Radar Technology: Pulse Compression
• Interface: Lowrance MFD

What’s in the Box:

• HALO20 Radar Unit
• 5m cable for HALO Dome Radar
• Cable, RJ45 To 5 Pin,1.5m
