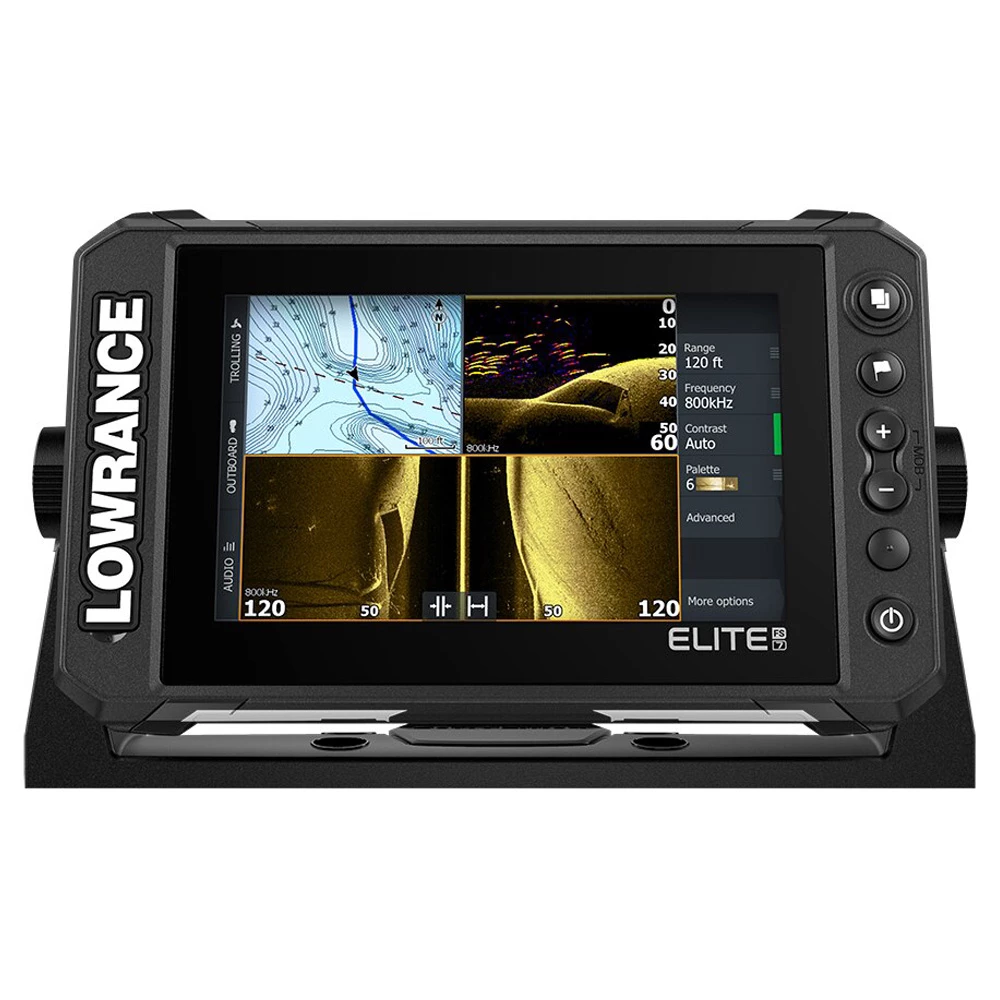

Lowrance Elite FS 7 GPS/Fishfinder NZ/AU

The most advanced sonar technologies in an easy to use and install display

The new Lowrance Elite FS 7 GPS/Fishfinder gives you access to the full line-up of Lowrance fishfinding tools – including ActiveTarget Live Sonar, Active Imaging and preloaded C-MAP AUS/NZ Enhanced Embedded charts – to help you make the most of your time on the water.

The Elite Fishing System (FS) combines the power of Lowrance’s proven and newest fish finding tools with a more affordable display that’s easier to use and install. From integrated support for ActiveTarget live sonar and extreme high-resolution Active Imaging with Lowrance CHIRP sonar, SideScan and DownScan Imaging to preloaded C-MAP AUS/NZ Enhanced Embedded Fishing Maps, Elite FS gives you all the tools you need to find and catch more fish.

Find more fish with proven Lowrance sonar
See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging 3-in-1 sonar featuring CHIRP, SideScan and DownScan with FishReveal. Get the best of CHIRP sonar and DownScan Imaging on one screen with FishReveal, a Lowrance exclusive that helps you easily recognise fish from structure and cover on high-detailed DownScan images.

Target fish live with new ActiveTarget live sonar
Fish smarter when you know exactly what fish are doing – in real time – with ActiveTarget Live Sonar. Enjoy high-resolution views of fish movements, tracking them as they swim in and around cover. Watch their real-time response to your lure and you will know if your current technique is working or if it’s time to switch things up.

Find key fishing areas with Enhanced Embedded Charts
Spend more time trying to catch fish and less time trying to find them with the high-resolution detail of C-MAP Enhanced Embedded inland and coastal charts built into Elite FS displays. From finding key fishing areas, like ledges, drop-offs and ditches to navigating with precision to fish-holding areas, you will have more success on the water with Enhanced Embedded charts.

Lowrance Elite FS 7 GPS/Fishfinder Features:

• ActiveTarget Live Sonar ready
• Active Imaging 3-in-1 ready
• FishReveal
• Preloaded C-MAP Enhanced Embedded charts with high resolution inland and coastal coverage, plus mapping options including C-MAP, Navionics and more
• C-MAP Easy Routing, Navionics Autorouting capability
• C-MAP Genesis Live onscreen mapping
• High-resolution multi-touch touchscreen
• Integrated wireless, NMEA 2000 and Ethernet connectivity
• Full touchscreen control of Power Pole® anchors and Ghost Trolling Motor

Lowrance Elite FS 7 GPS/Fishfinder Specifications:

• Power Consumption max: 0.9A @ 13VDC with backlight on full
• Power Consumption typical: 0.9A @ 13VDC with backlight on full
• Power Consumption min: 0.9A @ 13VDC with backlight on full
• SD Card Storage: 1 micro SD card up to 32GB
• Ethernet Ports: 1 virtual ethernet port
• Warranty Period: 1 Year + 4 additional years of upgrade options – totaling 5 years
• Update rate: 10 Hz
• GPS: 10 Hz Internal high-sensitivity WAAS + EGNOS + MSAS
• Shock Vibration: 100,000 cycles of 20 G
• Compass Safe: 12″ (300mm)
• Screen Brightness: 1200 nits
• Supply Voltage: 12v DC (10.8-17VDC)
• GPS Receiver Channels: 16
• NMEA 2000 Connectivity: 1x Micro-C
• Weight: 2.20 lbs (1.00 kg)
• Position Accuracy: 20m RMS
• Waypoints, Routes, Tracks: 3000 Waypoints, 100 Routes, 100 Trails with up to 10,000 points per trail
• Time to First Fix: 30s
• Recommended Fuse Rating: 3A
• Storage Temperature Range: 4°F to 140°F (-20°C to 60°C)
• Radar compatibility: 4G (Broadband), 3G (Broadband), Halo20 (Pulse Compression Dome Radar), Halo20+ (Pulse Compression Dome Radar), Halo24 (Pulse Compression Dome Radar)
• Operating Temperature Range: 5°F to 131°F (-15°C to 55°C)
• Humidity: 60°C, 95% relative humidity (RH) for 18 hours
• Viewing Angles: 80° top/bottom, 85° left/right
• Display Resolution: 800 x 480
• AIS: AIS Chart overlay. Target vessel details
• Charts supported: C-MAP (MAX N, MAX N+), C-MAP Genesis, Navionics (Gold, NAV+ Platinum+),Insight (Pro and HD), Lowrance Regional Mapping Partners
• Cartography included: C-MAP Contour + AUS/NZ (AUS/NZ models), Navionics basemap (AMER, AUS/NZ and ROW models)
• Correction: DGPS, WAAS
• Mounting Type: Gimbal Bracket or Dash Flush Mount
• Bluetooth: Integrated
• Sonar Compatibility: Integrated: CHIRP Broadband and Active Imaging DownScan, Active Imaging SideScan Compatible with: StructureScan
• Item Connectivity WiFi: Internal 802.11b/g/n
• Waterproofrating: IPX7 with card door closed
• Autopilot: MotorGuide Xi5/Xi3 Trolling Motor *requires Motorguide PinPoint Gateway
• Weather: None
• Internal Storage: None
• PC Connectivity: None
• Video: None
• Multimedia: None
• Digital Switching: None
• Backlight Colour: Pure White LED
• Interface: Touchscreen Zoom +/-MOB = (+/- combined) Pages Waypoint Light/Power

What’s in the box:

• Lowrance Elite FS 7 Unit
• Elite FS 7 Suncover
• HDS-7 LIVE / Elite FS 7 Bracket
• HDS/Elite/Hook/Mark Power Only Cable
• FUSE-1 Set of 3 x 3-amp Fuses

Note: Transducer sold separately.
