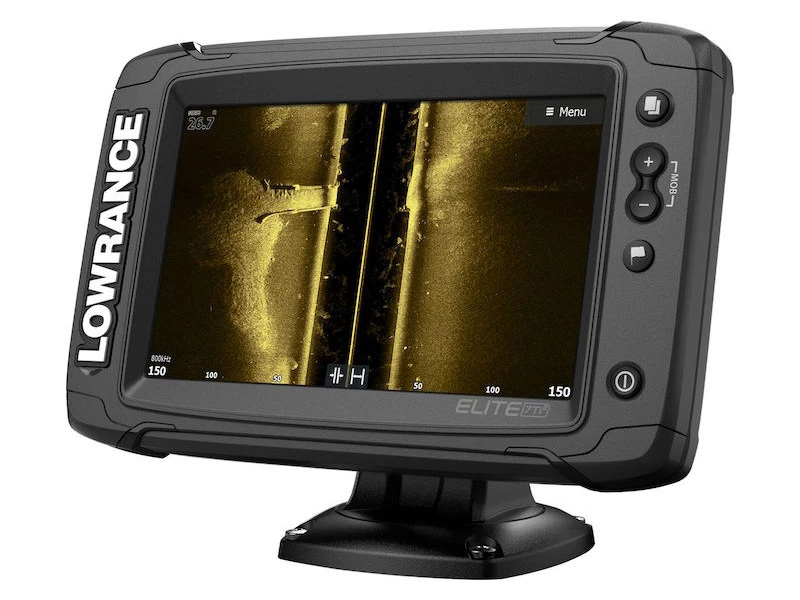

Lowrance Elite-7 Ti2 GPS/Fishfinder NZ/AU With Active Imaging 3-in-1 Transducer

Next generation display with advanced sonar and wireless networking

With the new Lowrance Elite-7 Ti2 GPS/Fishfinder, you get more advanced fishfinding features and connectivity, without the premium price. From high-detail Active Imaging, FishReveal, built-in Genesis Live real-time mapping and enhanced screen clarity and target separation to features that make your life easier on the water, like an easy-to-use touchscreen, wireless networking, smartphone notifications and trolling motor/Power Pole integration – Elite Ti2 is designed to help you have an easier time finding fish. The Elite-7 Ti2 is big enough for use as standalone display, but has a small enough footprint to be a perfect fit for boats with limited console space.

Professional Level Technology For All Anglers
Elite Ti2 packs Active Imaging – Lowrance’s highest quality sonar ever, FishReveal, built-in Genesis Live real-time mapping and enhanced screen clarity and target separation. Plus, with features that make your life easier on the water, like an easy-to-use touchscreen, wireless networking, smartphone notifications and trolling motor/Power Pole integration – Elite Ti2 is designed to help you have an easier time finding fish.

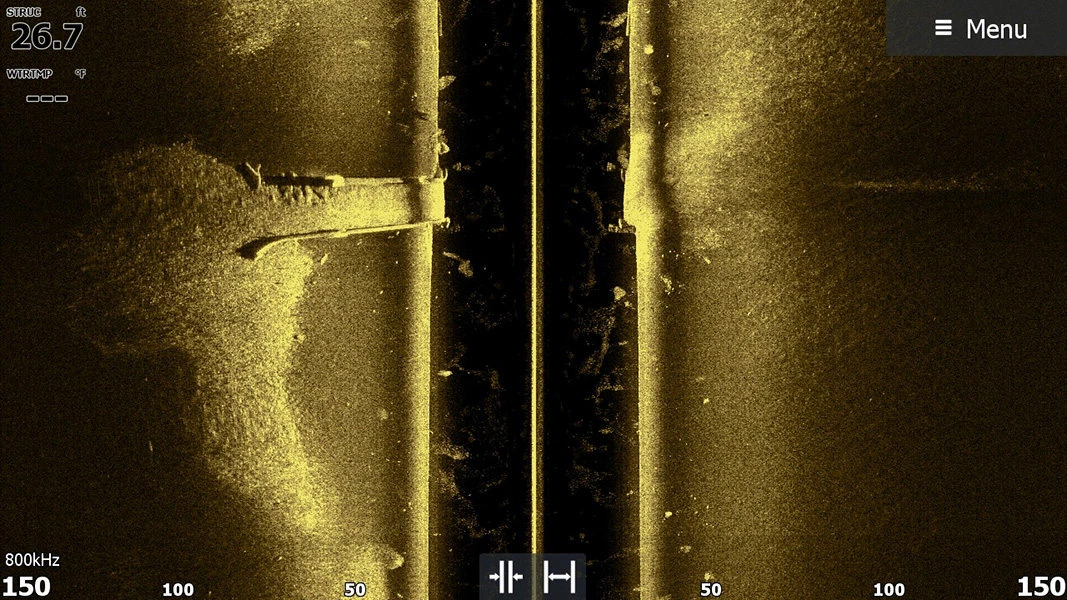

NEW Active Imaging
Perfect for pinpointing fish-holding areas like rockpiles, standing timber, weedbeds, ditches and drop-offs, NEW Active Imaging sonar delivers the most superior clarity and the highest resolution images of fish and structure at a longer range than any other structure-imaging technology.

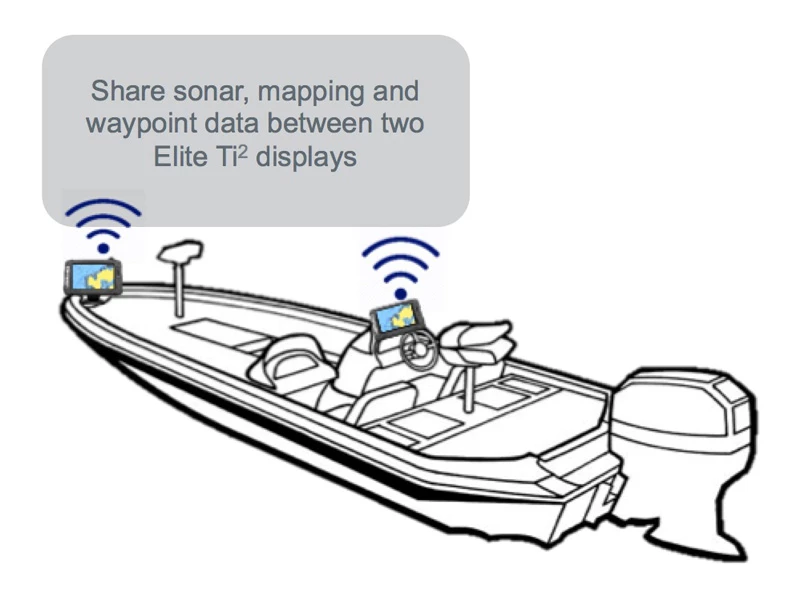

Wireless Networking
For the first time ever with the Elite series, you won’t need any cables to share sonar, mapping, waypoint and route data between Elite Ti2 displays with the new wireless networking capability.

Mapping in Real-Time
Update the maps of your favourite fishing spot or map unmapped areas with ½ foot contours – in real time – on the screen of your fishfinder/chartplotter with C-MAP Genesis Live. Genesis Live uses digital depth to create high-definition maps featuring 1/2-foot contours. This level of detail makes it easy to find areas where fish like to hide, like drop-offs, points, and ditches. A truly customisable mapping experience, Genesis Live gives you control over contour transparency, contour density, depth and safety shading colour palettes and more. Create your Genesis Live maps in real-time, saving them as you go to a microSD card.

C-MAP Easy Routing and Navionics Dock-to-Dock Autorouting
Navigate faster and easier with automatic route planning. This menu-activated feature automatically plots the shortest and safest course based on a boat’s draft, beam and height, creating a route around a landmass, shoals and other fixed navigational hazards. Requires C-MAP MAX-N+ charts, Navionics+ or Navionics Platinum charts.

Smartphone Notifications
Keep your eyes on the fish and never miss an important text or call with smartphone notifications built into Elite Ti2. Turn off phone notifications for uninterrupted fishing, or leave them on to receive popup notifications on the screen of your Elite Ti2 display.

Active Imaging 3-in-1 Transducer
Active Imaging 3-in-1 Transducer: Active Imaging 3-in-1 combines the new Active Imaging scanning sonar with a traditional Medium/High CHIRP sonar element for easy single transducer installation.7.6 m (25 ft) cable with 9 pin connector.

Lowrance Elite-7 Ti2 GPS/Fishfinder Features:

• Active Imaging 3-in-1 (CHIRP/SideScan/DownScan) ready
• C-MAP Genesis Live
• Smartphone Notifications
• Wireless Networking
• FishReveal Smart Target View
• C-MAP Easy Routing, Navionics Autorouting capability
• Preloaded Australia, New Zealand basemap, plus a multitude of mapping options, including C-MAP, Navionics and more
• Easy-to-use, high-resolution SolarMAX touchscreen display
• Built-in CHIRP and Broadband Sounder
• Touchscreen control of Power-Pole anchors, MotorGuide Xi5 Trolling Motor
• Integrated wireless connectivity
• SonicHub 2 compatible
• NMEA 2000 engine support
• Enhanced Surface Clarity lets you see more fish targets near the surface
• Quick Access Control Bar provides one–touch access to system controls

Lowrance Elite-7 Ti2 GPS/Fishfinder Specifications:

• Power Consumption max: 0.9A @ 13VDC with backlight on full
• Power Consumption typical: 0.9A @ 13VDC with backlight on full
• Power Consumption min: 0.9A @ 13VDC with backlight on full
• SD Card Storage: 1 micro SD card up to 32GB
• Ethernet Ports: 1 virtual ethernet port
• Warranty Period: 1 Year + 4 additional years of upgrade options. Totaling 5 years
• Update rate: 10 Hz
• GPS: 10 Hz Internal high-sensitivity WAAS + EGNOS + MSAS
• Shock Vibration: 100,000 cycles of 20 G
• Compass Safe: 12″ (300mm)
• Screen Brightness: 1200 nits
• Supply Voltage: 12v DC (10.8-17VDC)
• GPS Receiver Channels: 16
• NMEA 2000 Connectivity: 1x Micro-C
• Weight: 2.20 lbs (1.00 kg)
• Position Accuracy: 20m RMS
• Waypoints, Routes, Tracks: 3000 Waypoints 100 Routes 100 Trails with up to 10,000 points per trail
• Time to First Fix: 30s
• Recommended Fuse Rating: 3A
  Storage Temperature Range: 4°F to 140°F (-20°C to 60°C )
• Operating Temperature Range: 5°F to 131°F (-15°C to 55°C)
• Humidity: 60°C, 95% relative humidity (RH) for 18 hours
• Viewing Angles: 80° top/bottom, 85° left/right
• Display Resolution: 800×480
• AIS: AIS Chart overlay. Target vessel details.
• Charts supported: C-MAP (MAX N, MAX N+) C-MAP GenesisC-MAP Precision Contour HD (AMER ONLY) Navionics (Gold, NAV+ Platinum+)
  Insight (Pro and HD)
• Lowrance Regional Mapping Partners
• Catography included: C-MAP US Inland Basemap (US Inland models) Navionics basemap (AMER, AUS/NZ and US Costal/ROW
  models)
• Correction: DGPS, WAAS
• Mounting Type: Gimbal Bracket or Dash Flush Mount
• Bluetooth: Integrated
• Sonar Compatibility: Integrated: CHIRP Broadband Active Imaging DownScan Active Imaging SideScan Compatible with:
  StructureScan
• Item Connectivity WiFi: Internal 802.11b/g/n
• Waterproof rating: IPX7 with card door closed
• Autopilot: MotorGuide Xi5/Xi3 Trolling Motor *requires Motorguide PinPoint Gateway
• Radar compatibility: None
• Weather: None
• Internal Storage: None
• PC Connectivity: None
• Video: None
• Multimedia: None
• Digital Switching: None
• Backlight Colour: Pure White LED
• Interface: TouchscreenZoom +/-MOB = (+/- combined) Pages Waypoint Light/Power

What’s in the box:

• Elite-7 Ti2 Unit
• Active Imaging 3-in-1 Transducer
• Elite-7 Ti Sun Cover
• Quick Release Bracket for Elite/Mark 5″ Models
• HDS/Elite/Hook/Mark Power Only Cable
• Elite-Ti Corner Detail (Black and Blue)
