Next generation display with advanced sonar and wireless
networking
With the wide Lowrance Elite-12 Ti2
GPS/Fishfinder, you get more advanced fishfinding features
and connectivity, without the premium price. From high-detail
Active Imaging, FishReveal, built-in Genesis Live real-time mapping
and enhanced screen clarity and target separation to features that
make your life easier on the water, like an easy-to-use
touchscreen, wireless networking, smartphone notifications and
trolling motor/Power Pole integration – Elite Ti2 is designed to
help you have an easier time finding fish.
Professional Level Technology For All Anglers
Elite Ti2 packs Active Imaging – Lowrance’s highest quality sonar
ever, FishReveal, built-in Genesis Live real-time mapping and
enhanced screen clarity and target separation. Plus, with features
that make your life easier on the water, like an easy-to-use
touchscreen, wireless networking, smartphone notifications and
trolling motor/Power Pole integration – Elite Ti2 is designed to
help you have an easier time finding fish.

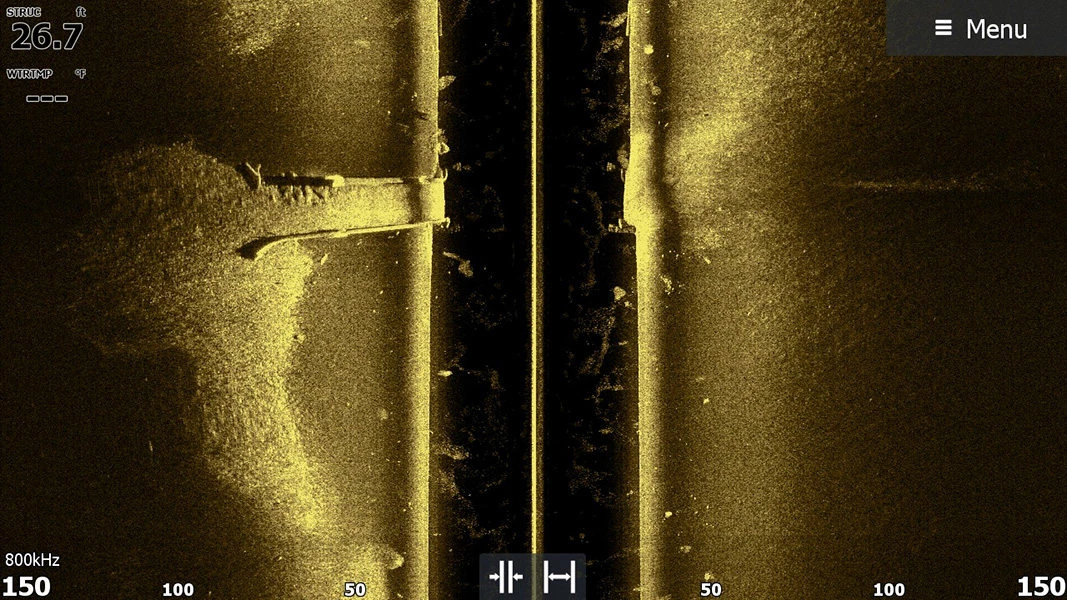

NEW Active Imaging
Perfect for pinpointing fish-holding areas like rockpiles, standing
timber, weedbeds, ditches and drop-offs, NEW Active Imaging sonar
delivers the most superior clarity and the highest resolution
images of fish and structure at a longer range than any other
structure-imaging technology.

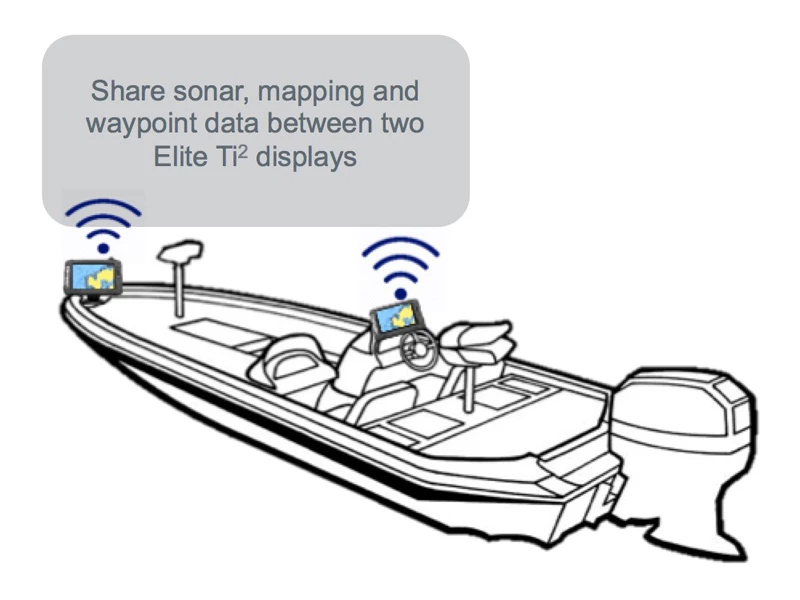

Wireless Networking
For the first time ever with the Elite series, you won’t need any
cables to share sonar, mapping, waypoint and route data between
Elite Ti2 displays with the new wireless networking capability.
Lowrance Elite-12 Ti2 GPS/Fishfinder Features:
- Active Imaging 3-in-1 (CHIRP/SideScan/DownScan) ready
- C-MAP Genesis Live
- Smartphone Notifications
- Wireless Networking
- FishReveal Smart Target View
- C-MAP Easy Routing, Navionics Autorouting capability
- Preloaded Australia, New Zealand basemap, plus a multitude of
mapping options, including C-MAP, Navionics and more - Easy-to-use, high-resolution SolarMAX touchscreen
display - Built-in CHIRP and Broadband Sounder
- Touchscreen control of Power-Pole anchors, MotorGuide Xi5
Trolling Motor - Integrated wireless connectivity
- SonicHub 2 compatible
- NMEA 2000 engine support
- Enhanced Surface Clarity lets you see more fish targets near
the surface - Quick Access Control Bar provides one–touch access to system
controls
Lowrance Elite-12 Ti2 GPS/Fishfinder
Specifications:
- SD Card Storage: 1 micro SD card up to 32GB
- Ethernet Ports: 1 virtual ethernet port
- Warranty Period: 1 Year + 4 additional years ofupgrade
optionsTotaling 5 years - Power Consumption max: 1.9A @ 13VDC with backlight on
full - Power Consumption typical: 1.9A @ 13VDC with backlight on
full - Power Consumption min: 1.9A @ 13VDC with backlight on
full - Update rate: 10 Hz
- GPS: 10 Hz Internal high-sensitivity WAAS + EGNOS +
MSAS - Shock Vibration: 100,000 cycles of 20 G
- Compass Safe: 12″ (300mm)
- Screen Brightness: 1200 nits
- Display Resolution: 1280 x 800
- Supply Voltage: 12v DC (10.8-17VDC)
- GPS Receiver Channels: 16
- NMEA 2000 Connectivity: 1x Micro-C
- Weight: 2.20 lbs (1.00 kg)
- Position Accuracy: 20m RMS
- Waypoints, Routes, Tracks: 3000 Waypoints100 Routes100 Trails
with up to 10,000 points per trail - Time to First Fix: 30s
- Recommended Fuse Rating: 3A
- Storage Temperature Range: 4°F to 140°F (-20°C to 60°C
) - Operating Temperature Range: 5°F to 131°F (-15°C to 55°C
) - Humidity: 60°C, 95% relative humidity (RH) for 18
hours - Viewing Angles: 80° top/bottom, 85° left/right
- AIS: AIS Chart overlay. Target vessel details.
- Charts supported: C-MAP (MAX N, MAX N+)C-MAP GenesisC-MAP
Precision Contour HD (AMER ONLY)Navionics (Gold, NAV+
Platinum+)Insight (Pro and HD)Lowrance Regional Mapping
Partners - Catography included: C-MAP US Inland Basemap (US Inland
models)Navionics basemap (AMER, AUS/NZ and US Costal/ROW
models) - Correction: DGPS, WAAS
- Mounting Type: Gimbal Bracket or Dash Flush Mount
- Bluetooth: Integrated
- Sonar Compatibility: Integrated: CHIRP Broadband Active Imaging
DownScan Active Imaging SideScan Compatible with:
StructureScan - Item Connectivity WiFi: Internal 802.11b/g/n
- Waterproofrating: IPX7 with card door closed
- Autopilot: MotorGuide Xi5/Xi3 Trolling Motor *requires
Motorguide PinPoint Gateway - Radar compatibility: None
- Weather: None
- Internal Storage: None
- PC Connectivity: None
- Video: None
- Multimedia: None
- Digital Switching: None
- Backlight Colour: Pure White LED
What’s in the box:
- Elite-12 Ti2 Unit
- Active Imaging 3-in-1 Transducer
- Elite-12 Ti Sun Cover
- Gimbal Bracket and Knobs for 12″ Lowrance
- HDS/Elite/Hook/Mark Power Only Cable
- Elite-Ti Corner Detail (Black and Blue)
