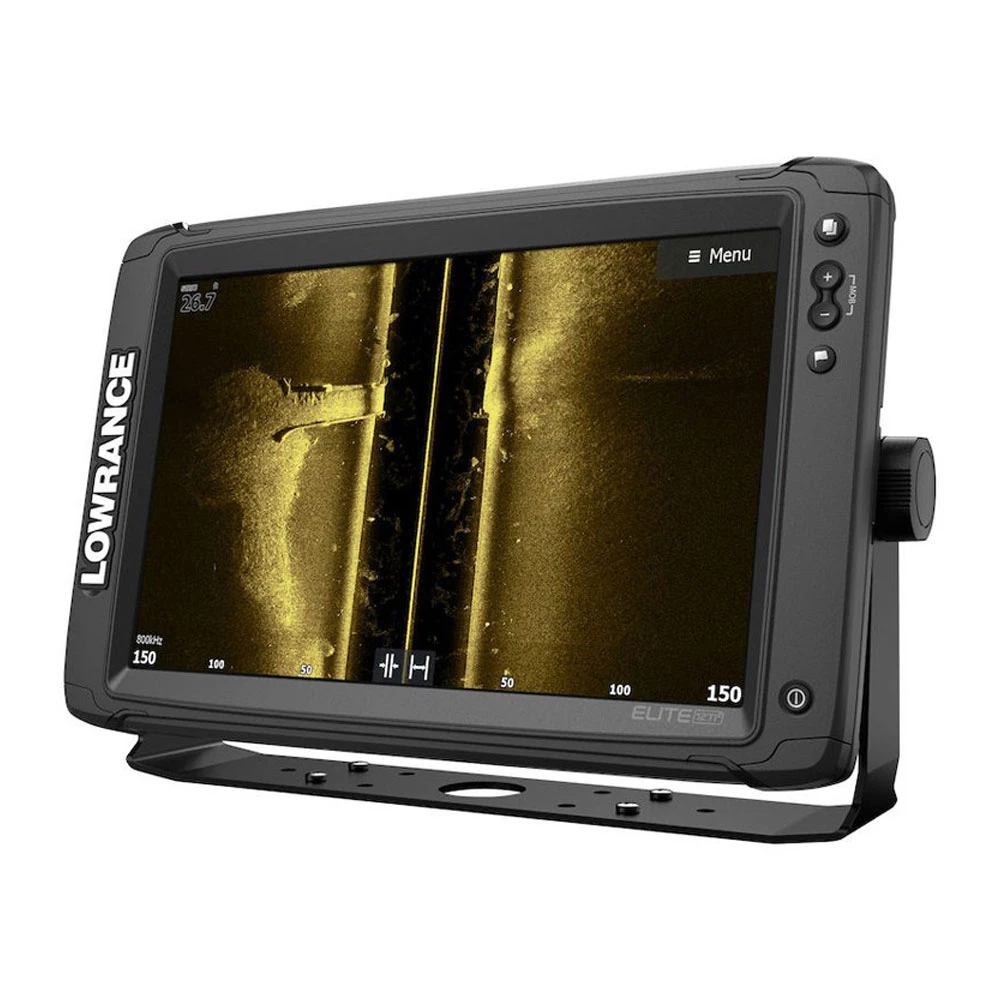

Lowrance Elite-12 Ti2 GPS/Fishfinder C-MAP NZ/AU

Next generation display with advanced sonar and wireless
networking

With the wide Lowrance Elite-12 Ti2
GPS/Fishfinder, you get more advanced fishfinding features
and connectivity, without the premium price. From high-detail
Active Imaging, FishReveal, built-in Genesis Live real-time mapping
and enhanced screen clarity and target separation to features that
make your life easier on the water, like an easy-to-use
touchscreen, wireless networking, smartphone notifications and
trolling motor/Power Pole integration – Elite Ti2 is designed to
help you have an easier time finding fish.

Professional Level Technology For All Anglers
Elite Ti2 packs Active Imaging – Lowrance’s highest quality sonar
ever, FishReveal, built-in Genesis Live real-time mapping and
enhanced screen clarity and target separation. Plus, with features
that make your life easier on the water, like an easy-to-use
touchscreen, wireless networking, smartphone notifications and
trolling motor/Power Pole integration – Elite Ti2 is designed to
help you have an easier time finding fish.

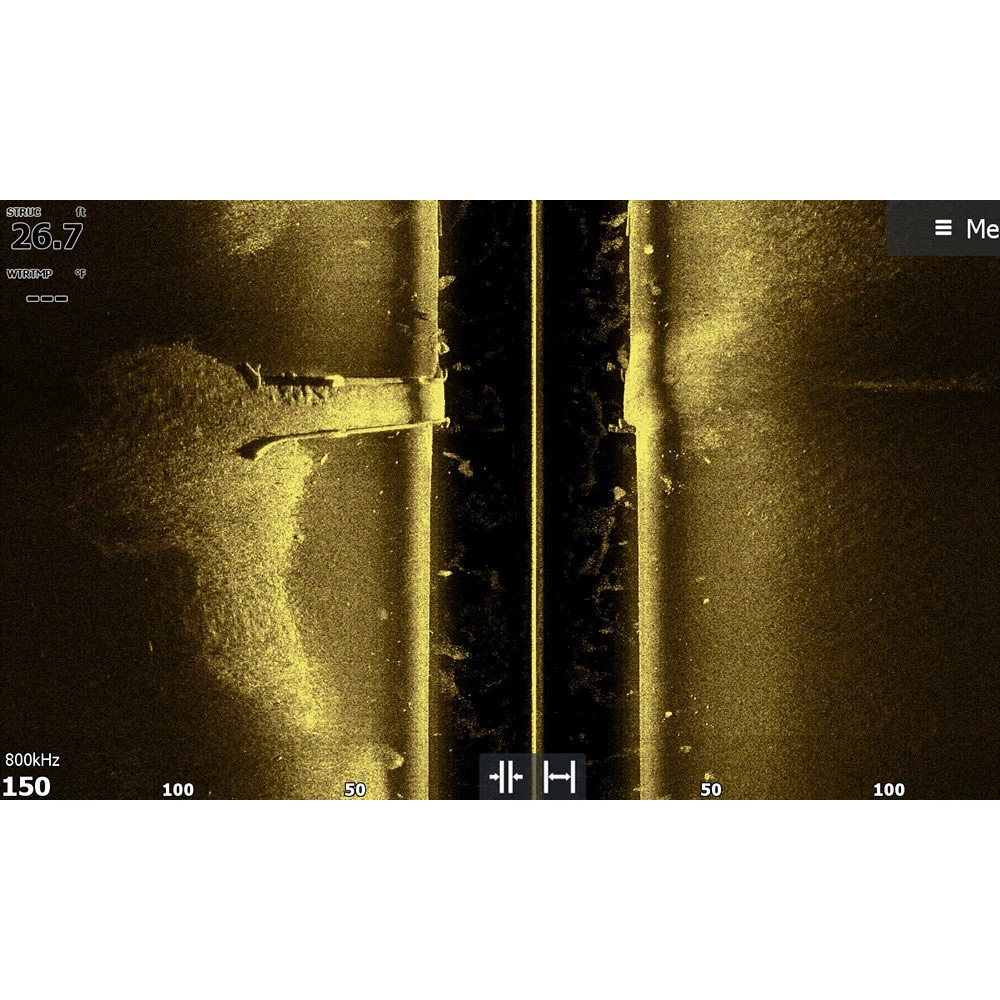

NEW Active Imaging
Perfect for pinpointing fish-holding areas like rockpiles, standing
timber, weedbeds, ditches and drop-offs, NEW Active Imaging sonar
delivers the most superior clarity and the highest resolution
images of fish and structure at a longer range than any other
structure-imaging technology.

Wireless Networking
For the first time ever with the Elite series, you won’t need any
cables to share sonar, mapping, waypoint and route data between
Elite Ti2 displays with the new wireless networking capability.

Mapping in Real-Time
Update the maps of your favourite fishing spot or map unmapped
areas with ½ foot contours – in real time – on the screen of your
fishfinder/chartplotter with C-MAP Genesis Live. Genesis Live uses
digital depth to create high-definition maps featuring 1/2-foot
contours. This level of detail makes it easy to find areas where
fish like to hide, like drop-offs, points, and ditches. A truly
customisable mapping experience, Genesis Live gives you control
over contour transparency, contour density, depth and safety
shading colour palettes and more. Create your Genesis Live maps in
real-time, saving them as you go to a microSD card.

C-MAP Easy Routing and Navionics Dock-to-Dock
Autorouting
Navigate faster and easier with automatic route planning. This
menu-activated feature automatically plots the shortest and safest
course based on a boat’s draft, beam and height, creating a route
around a landmass, shoals and other fixed navigational hazards.
Requires C-MAP MAX-N+ charts, Navionics+ or Navionics Platinum
charts.

Smartphone Notifications
Keep your eyes on the fish and never miss an important text or call
with smartphone notifications built into Elite Ti2. Turn off phone
notifications for uninterrupted fishing, or leave them on to
receive popup notifications on the screen of your Elite Ti2
display.

Lowrance Elite-12 Ti2 GPS/Fishfinder Features:

• Active Imaging 3-in-1 (CHIRP/SideScan/DownScan) ready
• C-MAP Genesis Live
• Smartphone Notifications
• Wireless Networking
• FishReveal Smart Target View
• C-MAP Easy Routing, Navionics Autorouting capability
• Preloaded Australia, New Zealand basemap, plus a multitude of
  mapping options, including C-MAP, Navionics and more
• Easy-to-use, high-resolution SolarMAX touchscreen
  display
• Built-in CHIRP and Broadband Sounder
• Touchscreen control of Power-Pole anchors, MotorGuide Xi5
  Trolling Motor
• Integrated wireless connectivity
• SonicHub 2 compatible
• NMEA 2000 engine support
• Enhanced Surface Clarity lets you see more fish targets near
  the surface
• Quick Access Control Bar provides one–touch access to system
  controls
• C-MAP NZ/AU Chart Card included

Lowrance Elite-12 Ti2 GPS/Fishfinder
Specifications:

• SD Card Storage: 1 micro SD card up to 32GB
• Ethernet Ports: 1 virtual ethernet port
• Warranty Period: 1 Year + 4 additional years ofupgrade options
  – Totaling 5 years
• Power Consumption max: 1.9A @ 13VDC with backlight on
  full
• Power Consumption typical: 1.9A @ 13VDC with backlight on
  full
• Power Consumption min: 1.9A @ 13VDC with backlight on
  full
• Update rate: 10 Hz
• GPS: 10 Hz Internal high-sensitivity WAAS + EGNOS +
  MSAS
• Shock Vibration: 100,000 cycles of 20 G
• Compass Safe: 12″ (300mm)
• Screen Brightness: 1200 nits
• Display Resolution: 1280 x 800
• Supply Voltage: 12v DC (10.8-17VDC)
• GPS Receiver Channels: 16
• NMEA 2000 Connectivity: 1x Micro-C
• Weight: 2.20 lbs (1.00 kg)
• Position Accuracy: 20m RMS
• Waypoints, Routes, Tracks: 3000 Waypoints100 Routes100 Trails
  with up to 10,000 points per trail
• Time to First Fix: 30s
• Recommended Fuse Rating: 3A
• Storage Temperature Range: 4°F to 140°F (-20°C to 60°C
  )
• Operating Temperature Range: 5°F to 131°F (-15°C to 55°C
  )
• Humidity: 60°C, 95% relative humidity (RH) for 18
  hours
• Viewing Angles: 80° top/bottom, 85° left/right
• AIS: AIS Chart overlay. Target vessel details.
• Charts supported: C-MAP (MAX N, MAX N+)C-MAP GenesisC-MAP
  Precision Contour HD (AMER ONLY)Navionics (Gold, NAV+
  Platinum+)Insight (Pro and HD)Lowrance Regional Mapping
  Partners
• Catography included: C-MAP US Inland Basemap (US Inland
  models)Navionics basemap (AMER, AUS/NZ and US Costal/ROW
  models)
• Correction: DGPS, WAAS
• Mounting Type: Gimbal Bracket or Dash Flush Mount
• Bluetooth: Integrated
• Sonar Compatibility: Integrated: CHIRP Broadband Active Imaging
  DownScan Active Imaging SideScan Compatible with:
  StructureScan
• Item Connectivity WiFi: Internal 802.11b/g/n
• Waterproofrating: IPX7 with card door closed
• Autopilot: MotorGuide Xi5/Xi3 Trolling Motor *requires
  Motorguide PinPoint Gateway
• Radar compatibility: None
• Weather: None
• Internal Storage: None
• PC Connectivity: None
• Video: None
• Multimedia: None
• Digital Switching: None
• Backlight Colour: Pure White LED

What’s in the box:

• Elite-12 Ti2 Unit
• C-MAP Chart Card
• Elite-12 Ti Sun Cover
• Gimbal Bracket and Knobs for 12″ Lowrance
• HDS/Elite/Hook/Mark Power Only Cable
• Elite-Ti Corner Detail (Black and Blue)

Note: Unit only. Transducer sold
separately.
