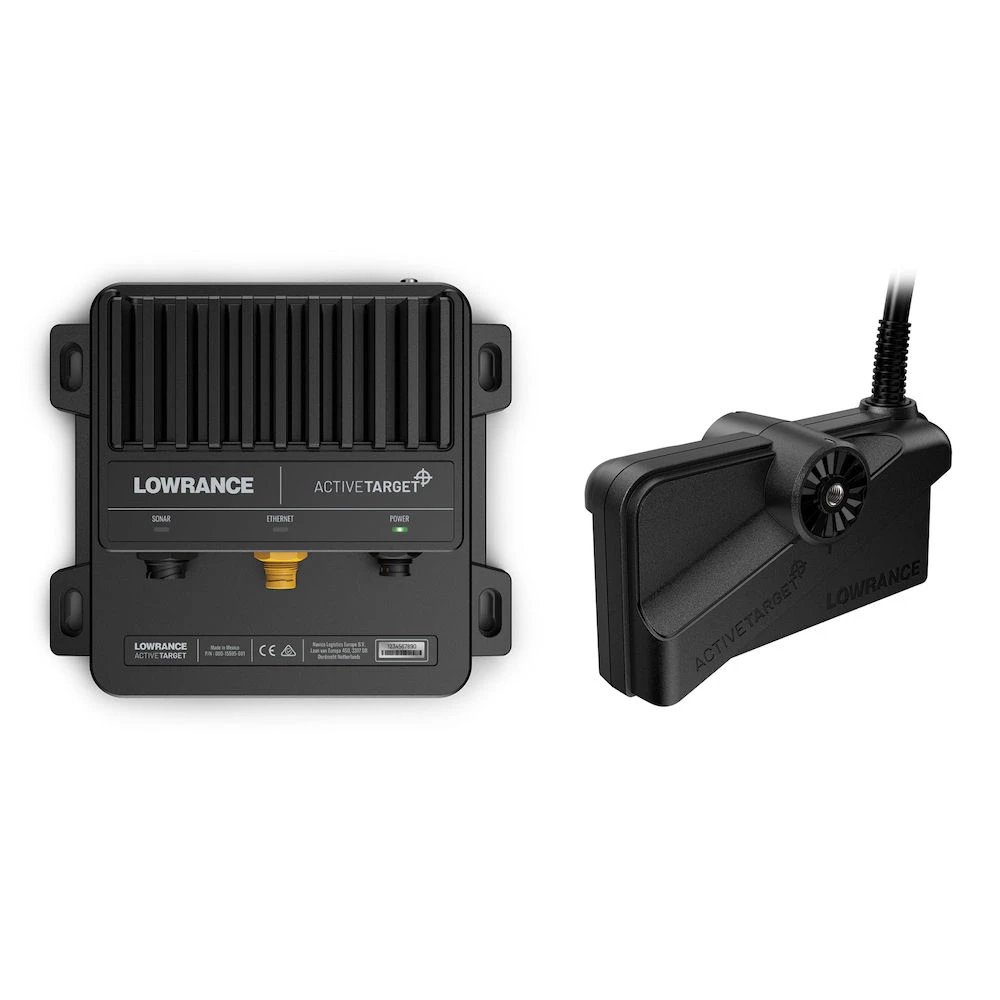

Lowrance ActiveTarget Live Sonar Module And Transducer

Game on!

See high-resolution images of fish swimming around structure and responding to your lure – as it happens. Featuring Forward, Down or Scouting views, the Lowrance ActiveTarget Live Sonar Module can scan fish locations and easily track their movements. See how fish relate to structure and respond to lure presentations, so you can make the right adjustments to make them strike. When you see how fish are located near structure and watch them respond to your lure, you will know if your current technique is working, or if it’s time to make an adjustment – information that is harder to get from traditional sonar or structure imaging.

ActiveTarget is compatible with Lowrance HDS LIVE, HDS Carbon and Elite FS fish finder/chartplotters.

Lowrance ActiveTarget Live Sonar Module Features:

• Get three views from one transducer: Forward view ahead of your boat, Down view below your boat or Scout view – an ultra-wide, overhead view in front of your boat
• See how fish are positioned in and around structure and watch them respond to your lure as it happens
• High-resolution live images remove the guesswork from sonar interpretation
• Know whether fish are active
• Compatible with HDS LIVE, HDS Carbon and Elite FS
• Includes module and transducer

Lowrance ActiveTarget Live Sonar Module Specifications:

• Part number: 000-15593-001
• Warranty Period: 1 Year + 4 additional years of upgrade options – totaling 5 years
• Power Consumption max: 1.5A @ 13.8VDC
• Power Consumption typical: 1.5A @ 13.8VDC
• Supply Voltage: 10.8 VDC – 31.2 VDC
• Shock Vibration: 100,000 cycles of 20 G
• Storage Temperature Range: -22°F to 158°F (-30°C to 70°C)
• Recommended Fuse Rating: 3A
• Operating Temperature Range: 5°F to 131°F (-15°C to 55°C)
• Humidity: 60°C, 95% relative humidity (RH) for 18 hours
• Interface: Ethernet to: HDS Live, HDS Carbon, Elite FS
• Waterproof rating: IP67
• Weight: Module: 4.12 lbs (1.86 kg), Transducer: 2.67 lbs (1.21 kg)
• Dimensions W x H x D: Module: 219.3 x 192.1 x 72.9 mm, Transducer: 149.8 x 82.4 x 58.0 mm
• Mounting Type: Module: Surface Mount, Transducer: Bracket Mount
• Ethernet Ports: Yes
