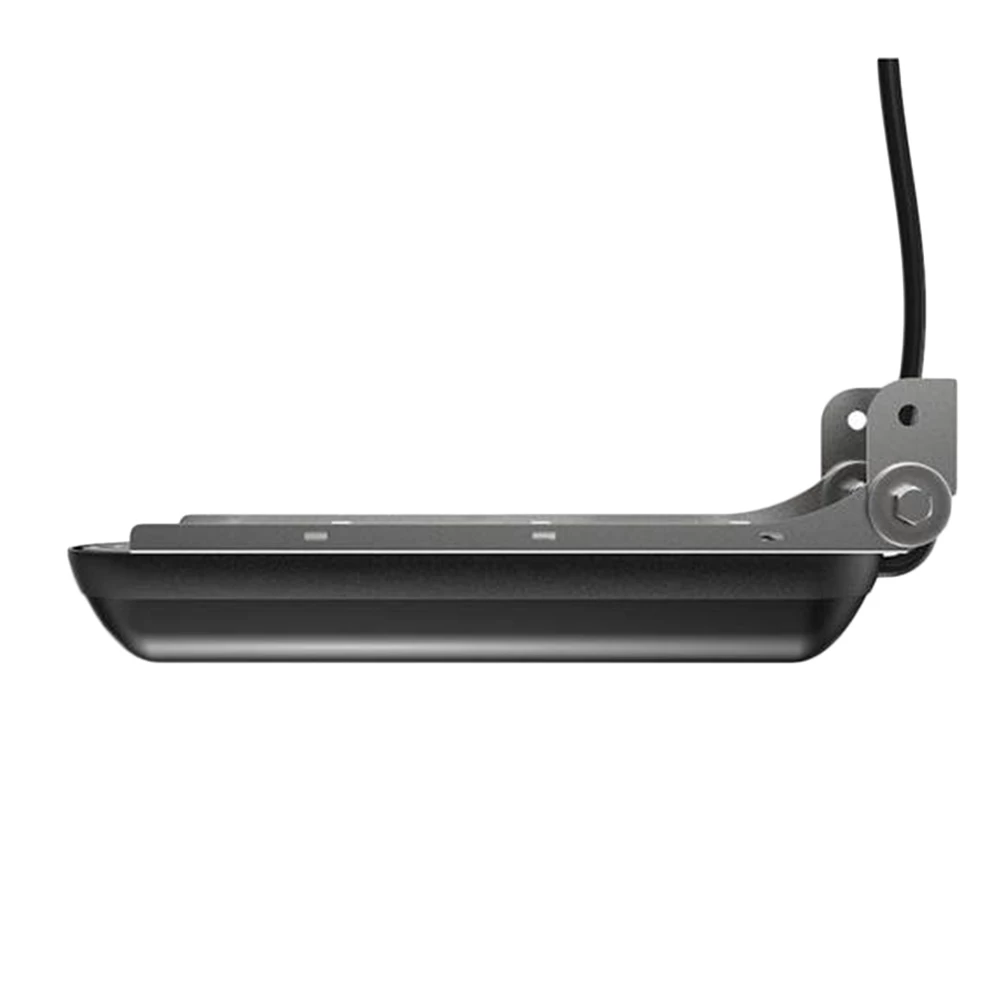

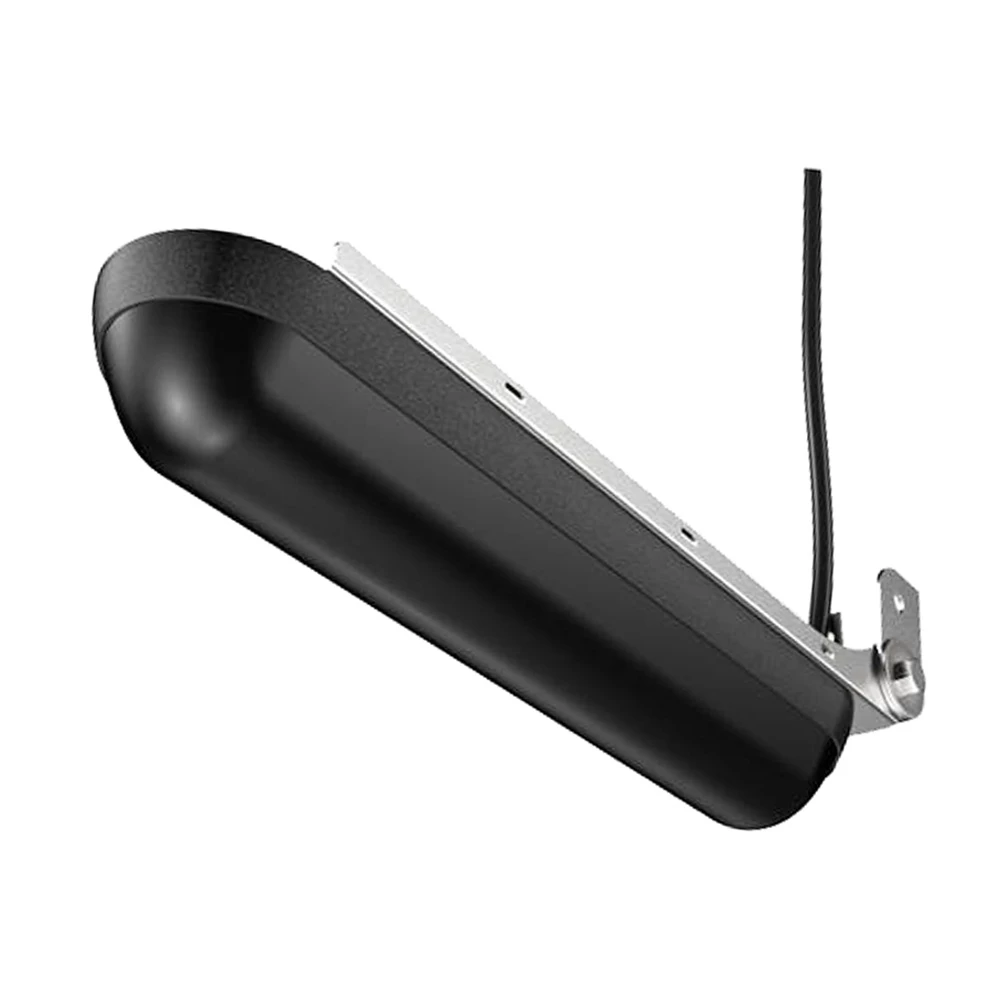

Lowrance Active Imaging 3-in-1 Transom Mount Transducer 6ft Cable

Superior clarity and the highest resolution images a longer
range

See structure and cover with a new level of refined detail and at a
range unmatched by any other structure imaging technology with
Lowrance Active Imaging 3-in-1 Transom Mount
Transducer featuring CHIRP, SideScan and DownScan with
FishReveal. The high-level clarity, target separation and detail of
Active Imaging will help you find more fish by making it easier to
quickly identify fish-holding structure like rockpiles, standing
timber, weedbeds, ditches and drop-offs – all at a greater distance
from your boat. Get the best of CHIRP sonar and DownScan on one
screen with the exclusive FishReveal Smart Target view that helps
you easily recognize fish from structure and cover on high-detailed
DownScan images. This version comes with a shorter cable.

Active Imaging Technology
Active Imaging utilises the latest techniques in sonar signal
generation. This transducer is constructed of a polymer that reacts
to sound waves more closely to water. This ensures that no sonar
signal is lost during transmit or receive. Active Imaging
transducer includes separate sonar elements for SideScan transmit
and receive Separating transmit and receive allows Active Imaging
to have an incredibly fast ping speed (Ping speed directly
correlates to image resolution). Additionally, these separate
elements focus more of the sonar signal outwardly, increasing the
sonar signal to the sides and leading to better range
performance.

Lowrance Active Imaging 2-in-1 Transom Mount Transducer
Features:

• More refined detail and better range than any other imaging
  technology
• Active Imaging 3-in-1 transducer with Lowrance CHIRP, SideScan
  and DownScan
• Easier target identification with FishReveal Smart Target
  View
• Active Imaging 3D transducer with Side and Down
  available
• Supports Medium and High CHIRP (83/200kHz) + 455/800kHz
  frequencies
• Compatible with Lowrance HDS LIVE, HDS Carbon, Elite Ti2
  displays
• 1.8 m (6 ft) cable with 9 pin connector

Lowrance Active Imaging 2-in-1 Transom Mount Transducer
Specifications:

• Operating temperature: -15°C to +55°C (+5°F to +131°F)
• Storage temperature: -30°C to +70°C (-22°F to +158°F)
• Cable length: 6ft
• Mounting options: Transom, flush step, and jackplate
  mounting
• Connector: 9 pin
• Output: Traditional, SideScan imaging, DownScan imaging and
  temperature
• Frequency:
  Traditional: 200 kHz/High
  Chirp 83 kHz/Medium Chirp
  SideScan: 455 kHz, 800 kHz
• Max depth:
  Traditional: 305 m (1000 ft) at 200 kHz/High Chirp and 83
  kHz/Medium Chirp
  DownScan: 91 m (300 ft)
  SideScan: 91 m (300 ft) side range at 455 kHz, 46 m (150ft) side
  range at 800 kHz
• Operating speed:
  Traditional: 48 knots (55 mph)
  DownScan and SideScan: 9 knots (10 mph)
