Lowrance 120 Ohm Terminating Kit

Uninterrupted RF signal flow in your network

When radio frequency signals travel through your network’s wire, it
can be interfered by different elements and cause communication
problems. Keep the good flow of RF signals in your network by
connecting 120 ohm terminators to your NMEA 2000 network bus. The

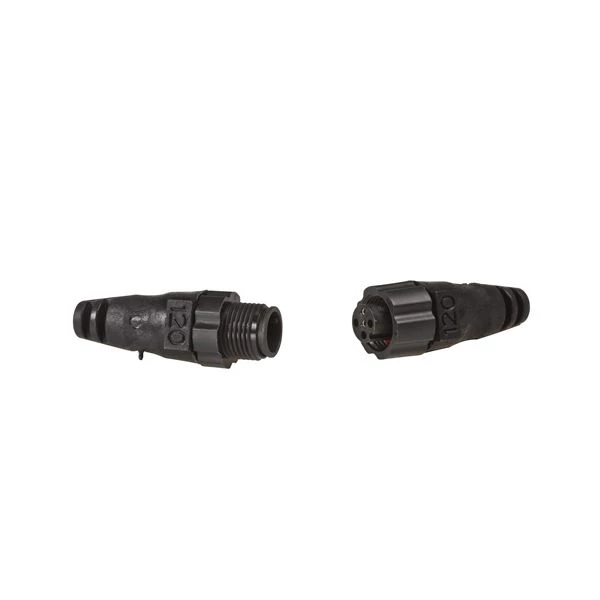

Lowrance Ohm Terminating Kit includes one male and
one female terminator you can connect to your network cable,
preventing signal reflections. This minimises intermittent
communication failure within your network, ensuring you of a
successful navigation on the water.

Lowrance Ohm Terminating Kit Features:

• Prevents signal reflections within the network
• Has 2 standard 120 ohm terminators, one male and one
  female
• Works with NMEA 2000 compliant units

Note: Never add terminators to an operational
NMEA 2000 network bus. If it’s working, it’s already terminated. If
you are using two 120-ohm terminators, it’s best to connect them to
sockets on the network as far from each other as possible.
